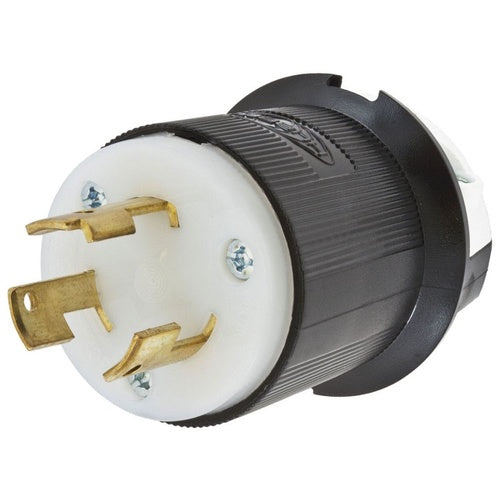

Hubbell HBL3331GC Locking Plug-2P3W30A250V

Overview

Hubbell HBL3331GC Locking Plug-2P3W30A250V

Product Specifications

• UPC: 78358503982
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon
• Color: Black/White
• Cord Size: 0.36 to 0.93 Inch
• Approval: UL 94/498, CSA C22.2
• Additional Information: Blade Material Brass; Enclosure IP20; Temperature Rating -40 to 60 Deg C
• Catalog Number: HBL3331GC
• Brand Name: Twist-Lock[R], Insulgrip[R]
• Model: HBL
• Type: Polarized
• Constructional Feature: Chemical Resistant, Impact Resistant
• Configuration: Non-NEMA Locking
• Voltage Rating: 250 VAC
• Current Rating: 30 Ampere
• Catalog Description: TWIST-LOCK INDUSTRIAL MALE PLUG, 30A 250V AC, 3-POLE 3-WIRE NON-GROUNDING, NON-NEMA, SCREW TERMINAL
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Black/White Color; Non-NEMA Locking Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 250 VAC Voltage Rating; 30 Ampere Current Rating; Grounding; 2 Pole(S); Chemical Resistant, Impact Resistant; 0.36 to 0.93 Inch Cord Size; TWIST-LOCK[R], INSULGRIP[R] Brand; Blade Material Brass; Enclosure IP20; Temperature Rating -40 to 60 Deg C; HBL Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585039824
• SKU Name: hubw hbl3331gc

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
