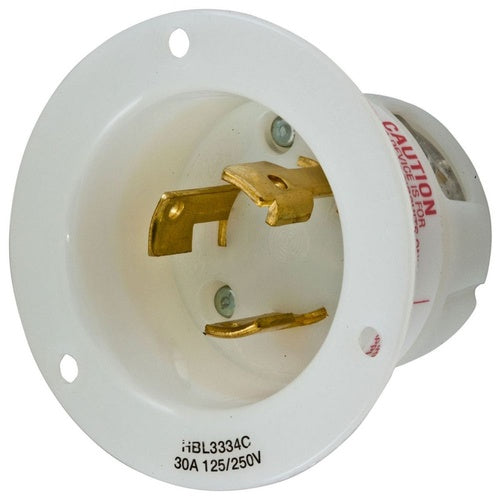

Hubbell HBL3334C Locking Flanged Inlet-3P3W30A250V

Overview

Hubbell HBL3334C Locking Flanged Inlet-3P3W30A250V

Product Specifications

• UPC: 78358503985
• Number Of Wires: 3
• Ground Type: Non-Grounding
• Material: Nylon Casing
• Color: White
• Approval: UL 94/498, CSA C22.2
• Additional Information: Blade Material Brass; Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL3334C
• Brand Name: Twist-Lock[R], Insulgrip[R]
• Type: Polarized
• Constructional Feature: Impact Resistant
• Configuration: Non-NEMA Locking
• Voltage Rating: 125/250 VAC
• Current Rating: 30 Ampere
• Number Of Poles: 3
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, FLANGED INLET, 30A 125/250V, 3-POLE 3-WIRE NON GROUNDING, NON-NEMA, SCREW TERMINAL, WHITE
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Casing Material; White Color; Non-NEMA Locking Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 125/250 VAC Voltage Rating; 30 Ampere Current Rating; Non-Grounding; 3 Pole(S); Impact Resistant; TWIST-LOCK[R], INSULGRIP[R] Brand; Blade Material Brass; Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Flanged Male Base Inlet
• Unspsc: 39121406
• UPC 12 Digit: 783585039855
• SKU Name: hubw hbl3334c

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
