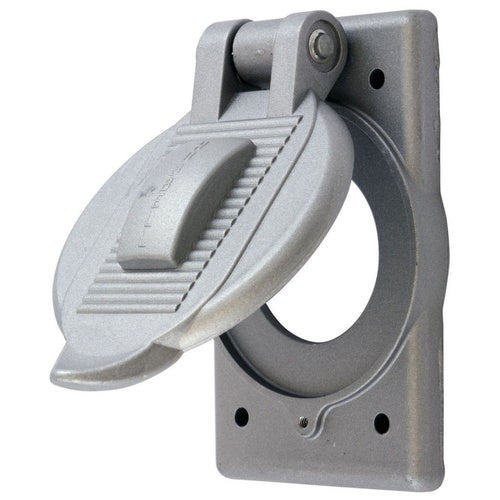

Hubbell HBL3393 Weather-Proof Plate, 1G, Cast Alum

Overview

Hubbell HBL3393 Weather-Proof Plate, 1G, Cast Alum

Product Specifications

• UPC: 78358580909
• Mounting: Box
• Approval: UL, CSA
• Additional Information: Enclosure Rating IP44; Temperature Rating -40 to 85 Deg C; Environmental Condition Wet Location; Used On FD/FS Device Box
• Catalog Number: HBL3393
• Brand Name: Wiring Device-Kellems
• Type: Self-Closing
• Device Opening: (1) 1.68 to 1.72 Inch Diameter Single Receptacle
• Number Of Gangs: 1
• Lid Type: Single Lid
• Size: 2.84 Inch Width x 4.56 Inch Height
• Material: Cast Aluminum
• Catalog Description: WALLPLATES AND BOXES, WEATHERPROOF COVERS, 1-GANG, 1) 1.72" OPENING, STANDARD SIZE, CAST ALUMINUM
• Category: Wall Plates & Covers
• Full Technical Description: Self-Closing Type; Cast Aluminum Material; 2.84 Inch Width X 4.56 Inch Height Size; 1 Gang(S); UL, CSA Approval; Box Mounting; Single Lid Lid Type; (1) 1.68 to 1.72 Inch Diameter Single Receptacle Device Opening; Enclosure Rating IP44; Temperature Rating -40 to 85 Deg C; Environmental Condition Wet Location; Used on Fd/Fs Device Box
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Weatherproof Device Box Cover with Lid
• Unspsc: 39121304
• UPC 12 Digit: 783585809090
• SKU Name: hubw hbl3393

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
