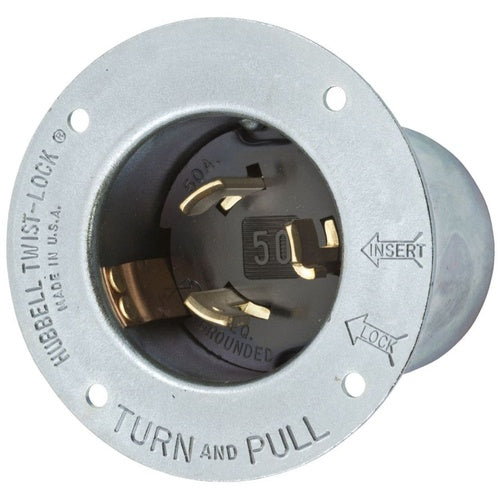

Hubbell HBL3777 Locking Flanged Inlet 3W-50A

Overview

Hubbell HBL3777 Locking Flanged Inlet 3W-50A

Product Specifications

• UPC: 78358523649
• Ground Type: Grounding
• Material: Zinc Plated Steel Casing
• Color: Metallic
• Approval: UL 94V-0/498, CSA C22.2
• Additional Information: Blade Material Brass; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL3777
• Brand Name: Twist-Lock[R]
• Type: Polarized
• Constructional Feature: Heat Resistance
• Voltage Rating: 600 VAC/250 VDC
• Current Rating: 50 Ampere
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, FLANGED INLET, 50A 250V, 600V AC, 2-POLE 3-WIRE GROUNDING, NON-NEMA, SCREW TERMINAL, ZINC PLATED STEEL CASING, THERMOSET INTERIOR, METALLIC
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Zinc Plated Steel Casing Material; Metallic Color; 3 Wire(S); UL 94V-0/498, CSA C22.2 Approval; 600 Vac/250 VDC Voltage Rating; 50 Ampere Current Rating; Grounding; 2 Pole(S); Heat Resistance; TWIST-LOCK[R] Brand; Blade Material Brass; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Flanged Male Base Inlet
• Unspsc: 39121406
• UPC 12 Digit: 783585236490
• SKU Name: hubw hbl3777

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
