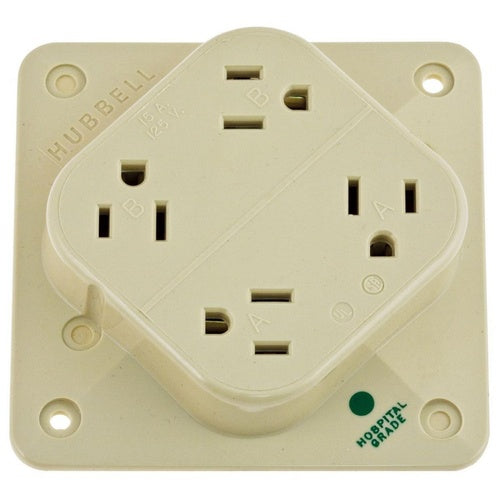

Hubbell HBL415HI Hospital Grade 15A125V Nema5-15R

Overview

Hubbell HBL415HI Hospital Grade 15A125V Nema5-15R

Product Specifications

• UPC: 78358501576
• Ground Type: Grounding
• Material: Polycarbonate
• Color: Ivory
• Grade: Hospital
• Approval: UL, CSA
• Additional Information: Overall Dimension 4.30 Inch W x 0.92 Inch D; Contact Material 0.032 Inch Brass; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL415HI
• Brand Name: 4-PLEX[R]
• Model: HBL415H
• Configuration: 5-15R
• Voltage Rating: 125 VAC
• Current Rating: 15 Ampere
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: STRAIGHT BLADE DEVICES, RECEPTACLES, 4- PLEX, HOSPITAL GRADE, 2-POLE 3-WIRE GROUNDING, 15A 125V, 5-15R, IVORY, SINGLE PACK.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Polycarbonate Material; Ivory Color; 5-15R Configuration; 3 Wire(S); Hospital Grade; UL, CSA Approval; 125 VAC Voltage Rating; 15 Ampere Current Rating; Grounding; 2 Pole(S); 4-PLEX[R] Brand; Overall Dimension 4.30 Inch W X 0.92 Inch D; Contact Material 0.032 Inch Brass; Operating Temperature -40 to 75 Deg C; HBL415H Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Quad Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585015767
• SKU Name: hubw hbl415hi

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
