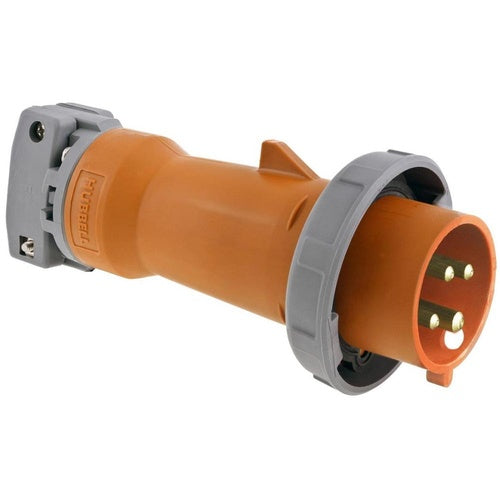

Hubbell HBL430P12W Pin And Sleeve, Iec, Plug, 3P4W, 30A 125/250V,4X/69K

Overview

Hubbell HBL430P12W Pin And Sleeve, Iec, Plug, 3P4W, 30A 125/250V,4X/69K

Product Specifications

• UPC: 78358540456
• Approval: UL, CSA
• Additional Information: APPLICABLE STANDARD IEC 309-1, 309-2; AREA OF APPLICATION AGRICULTURE, CHEMICAL PROCESSING, CONSTRUCTION, ENTERTAINMENT, FOOD PROCESSING, FOOD SERVICE, MANUFACTURING, MILITARY; ENCLOSURE IP67; PIN MATERIAL BRASS; OPERATING TEMPERATURE -40 TO 75 DEG C
• Catalog Number: HBL430P12W
• Type: Industrial
• Constructional Feature: Watertight
• Voltage Rating: 125/250 Volt AC
• Current Rating: 30 Amp
• Number Of Poles: 3
• Number Of Wires: 4
• Material: Zytel ST801 Nylon
• Catalog Description: HEAVY DUTY PRODUCTS, IEC PIN AND SLEEVE DEVICES, INDUSTRIAL GRADE, MALE, PLUG, 30A 125/250V, 3-POLE 4-WIRE GROUNDING, TERMINAL SCREWS, ORANGE, WATERTIGHT
• Category: Pin & Sleeve Devices
• Full Technical Description: Industrial Type; Zytel ST801 Nylon Material; 4 Wire(S); UL, CSA Approval; 125/250 Volt AC Voltage Rating; 30 Amp Current Rating; 3 Pole(S); Watertight; Applicable Standard IEC 309-1, 309-2; Area of Application Agriculture, Chemical Processing, Construction, Entertainment, Food Processing, Food Service, Manufacturing, Military; Enclosure IP67; Pin Material Brass; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585404561
• SKU Name: hubw hbl430p12w
