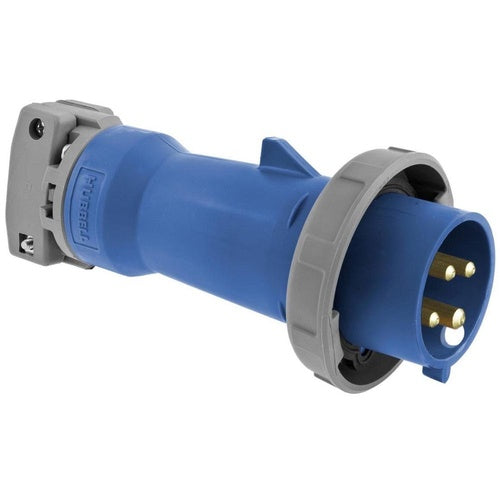

Hubbell HBL430P9W Pin And Sleeve,Iec,Plug,3P4W, 30/32A 200-250V,4X/69K

Overview

Hubbell HBL430P9W Pin And Sleeve,Iec,Plug,3P4W, 30/32A 200-250V,4X/69K

Product Specifications

• UPC: 78358540460
• Minimum Cable Outer Diameter: 0.5 Inch
• Maximum Cable Outer Diameter: 1.22 Inch
• Material: Zytel ST801 Nylon
• Approval: UL 1682/1686C2, CSA C22.2
• Additional Information: Color Blue; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Applicable Standard IEC 60309-1/60309-2
• Catalog Number: HBL430P9W
• Brand Name: Wiring Device-Kellems
• Type: Polarized
• Constructional Feature: Impact/Chemical Resistant, Water Tight
• Voltage Rating: 240 Volt AC 3-Phase
• Current Rating: 30 Amp
• Number Of Poles: 3
• Number Of Wires: 4
• Catalog Description: HEAVY DUTY PRODUCTS, IEC PIN AND SLEEVE DEVICES, INDUSTRIAL GRADE, MALE, PLUG, 30A 125/250V, 3-POLE 4-WIRE GROUNDING, TERMINAL SCREWS, ORANGE, WATERTIGHT
• Category: Pin & Sleeve Devices
• Full Technical Description: Polarized Type; Zytel ST801 Nylon Material; 0.5 Inch min. Cable Outer Diameter; 1.22 Inch Max. Cable Outer Diameter; 4 Wire(S); UL 1682/1686C2, CSA C22.2 Approval; 240 Volt AC 3-Phase Voltage Rating; 30 Amp Current Rating; 3 Pole(S); Impact/Chemical Resistant, Water Tight; CIRCUIT-LOCK[R] Brand; Color Blue; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Applicable Standard IEC 60309-1/60309-2
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585404608
• SKU Name: hubw hbl430p9w
