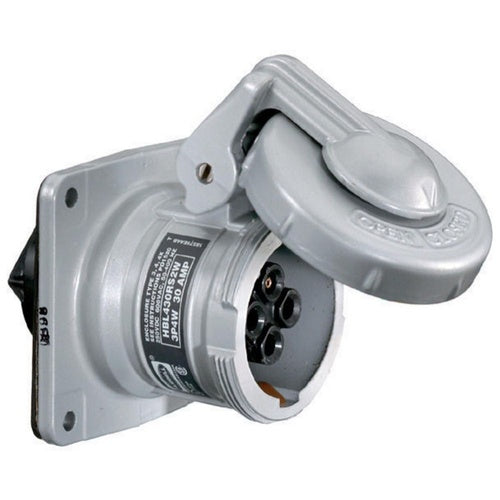

Hubbell HBL430RS1W Pin And Sleeve, Iec, Receptacle, 3P4W, 30A 600V, S1

Overview

Hubbell HBL430RS1W Pin And Sleeve, Iec, Receptacle, 3P4W, 30A 600V, S1

Product Specifications

• UPC: 78358501016
• Grounding Style: 1, Shell
• Door Type: Spring Cover
• Material: Epoxy Painted Aluminum
• Grade: Industrial
• Approval: UL 50/62/1682/1686, CSA C22.2
• Additional Information: Applicable Standard IEC 60309-1 IEC 60309-2; Enclosure NEMA 3/4/4X; Operating Temperature -25 to 75 Deg C
• Catalog Number: HBL430RS1W
• Brand Name: Insulgrip[R]
• Type: Polarized
• Constructional Feature: Watertight, Dusttight, Impact Resistant
• Voltage Rating: 600 VAC/250 VDC
• Current Rating: 30 Ampere
• Number Of Poles: 3
• Number Of Wires: 4
• Catalog Description: HEAVY DUTY INSULGRIP PIN AND SLEEVE DEVICES, INDUSTRIAL GRADE FEMALE RECEPTACLE, 30A 600V AC, 3-POLE 4-WIRE GROUNDING STYLE 1,TERMINAL SCREWS
• Category: Pin & Sleeve Devices
• Full Technical Description: Polarized Type; Epoxy Painted Aluminum Material; 4 Wire(S); Industrial Grade; UL 50/62/1682/1686, CSA C22.2 Approval; 600 Vac/250 VDC Voltage Rating; 30 Ampere Current Rating; 3 Pole(S); Watertight, Dusttight, Impact Resistant; Spring Cover; 1, Shell Grounding Style; INSULGRIP[R] Brand; Applicable Standard IEC 60309-1 IEC 60309-2; Enclosure NEMA 3/4/4X; Operating Temperature -25 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585010168
• SKU Name: hubw hbl430rs1w
