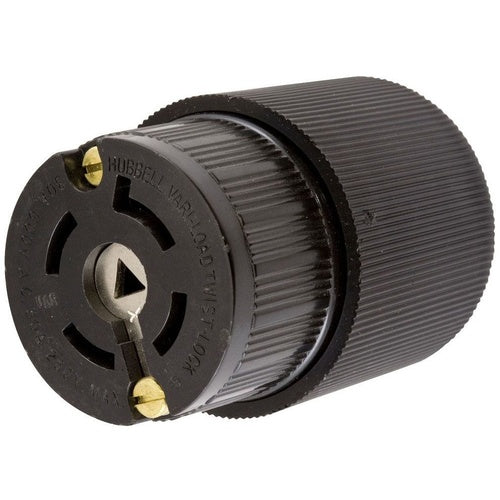

Hubbell HBL45235 Locking Connector-4P5W30A600V

Overview

Hubbell HBL45235 Locking Connector-4P5W30A600V

Product Specifications

• UPC: 78358523655
• Number Of Poles: 4
• Number Of Wires: 5
• Ground Type: Grounding
• Material: Nylon
• Color: Black
• Cord Size: 0.625 to 1 Inch
• Approval: UL 94/498, CSA C22.2
• Additional Information: Temperature Rating -40 to 60 Deg C
• Catalog Number: HBL45235
• Brand Name: Twist-Lock[R], Variload[R]
• Model: HBL
• Type: Polarized
• Constructional Feature: Heat Resistant
• Configuration: Non-NEMA Locking
• Voltage Rating: 250/600 VAC, 250 VDC
• Current Rating: 30 Ampere
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, VARILOAD, FEMALE CONNECTOR BODY, 30A 250V DC/600V AC, 50 - 400 HZ 4-POLE 5-WIRE GROUNDING, NON-NEMA, SCREW TERMINAL, BLACK NON METALLIC BODY, UNIQUE CENTER PIN
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Black Color; Non-NEMA Locking Configuration; 5 Wire(S); UL 94/498, CSA C22.2 Approval; 250/600 VAC, 250 VDC Voltage Rating; 30 Ampere Current Rating; Grounding; 4 Pole(S); Heat Resistant; 0.625 to 1 Inch Cord Size; TWIST-LOCK[R], VARILOAD[R] Brand; Temperature Rating -40 to 60 Deg C; HBL Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585236551
• SKU Name: hubw hbl45235
