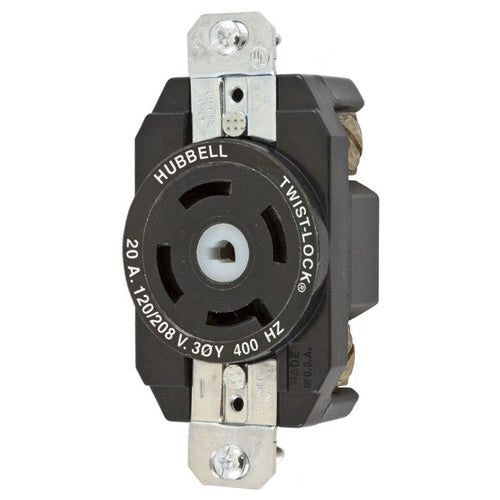

Hubbell HBL45905 Locking Receptacle-4P5W20A208V

Overview

Hubbell HBL45905 Locking Receptacle-4P5W20A208V

Product Specifications

• UPC: 78358523805
• Number Of Poles: 4
• Number Of Wires: 5
• Ground Type: Grounding
• Face Outer Diameter: 1.72 Inch
• Material: Urea Face
• Color: Black
• Approval: UL 94/498, CSA C22.2
• Catalog Number: HBL45905
• Brand Name: Twist-Lock[R], Variload[R]
• Model: HBL
• Type: Single Locking
• Constructional Feature: Heat Resistant
• Configuration: Non-NEMA Locking
• Voltage Rating: 120/208 V Star 3-Phase at 400 Hz
• Current Rating: 20 Ampere
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, VARILOAD, FLUSH RECEPTACLE, 20A 3-PHASE WYE 120/208V AC ONLY - 400HZ, 4-POLE 5-WIRE GROUNDING, NON-NEMA, SCREW TERMINAL, BLACK UREA FACE, UNIQUE CENTER PIN.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Locking Type; Urea Face Material; Black Color; Non-NEMA Locking Configuration; 5 Wire(S); UL 94/498, CSA C22.2 Approval; 120/208 V Star 3-Phase at 400 Hz Voltage Rating; 20 Ampere Current Rating; Grounding; 4 Pole(S); Heat Resistant; 1.72 Inch Face Outer Diameter; TWIST-LOCK[R], VARILOAD[R] Brand; HBL Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585238050
• SKU Name: hubw hbl45905

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
