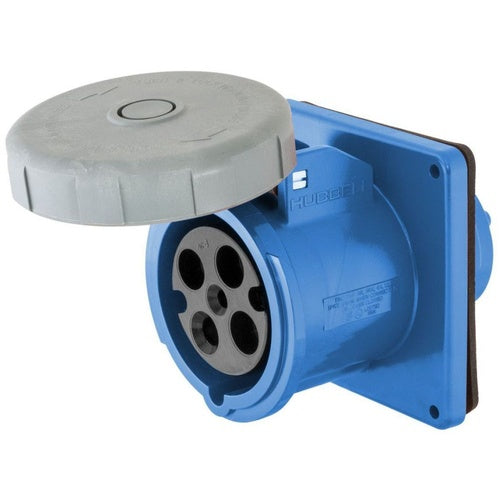

Hubbell HBL460R9W Pin And Sleeve, Receptacle, 3P4W, 60/63A 200-250V,4X/69K

Overview

Hubbell HBL460R9W Pin And Sleeve, Receptacle, 3P4W, 60/63A 200-250V,4X/69K

Product Specifications

• UPC: 78358540493
• Door Type: Spring Cover
• Material: Zytel 101 Nylon
• Grade: Industrial
• Approval: UL 1682/1686C2, CSA C22.2
• Additional Information: Color Blue; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Applicable Standard IEC 60309-1 IEC 60309-2
• Catalog Number: HBL460R9W
• Brand Name: Wiring Device-Kellems
• Type: Mechanically Interlocked
• Constructional Feature: Corrosion Resistant, Water Tight
• Voltage Rating: 250 Volt 3-Phase
• Current Rating: 60 Amp
• Number Of Poles: 3
• Number Of Wires: 4
• Catalog Description: HEAVY DUTY PRODUCTS, IEC PIN AND SLEEVE DEVICES, INDUSTRIAL GRADE, FEMALE, RECEPTACLE, 60A 3-PHASE DELTA 250V AC, 3-POLE 4-WIRE GROUNDING, TERMINAL SCREWS, BLUE, WATERTIGHT
• Category: Pin & Sleeve Devices
• Full Technical Description: Mechanically Interlocked Type; Zytel 101 Nylon Material; 4 Wire(S); Industrial Grade; UL 1682/1686C2, CSA C22.2 Approval; 250 Volt 3-Phase Voltage Rating; 60 Amp Current Rating; 3 Pole(S); Corrosion Resistant, Water Tight; Spring Cover; Color Blue; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Applicable Standard IEC 60309-1 IEC 60309-2
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585404936
• SKU Name: hubw hbl460r9w

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
