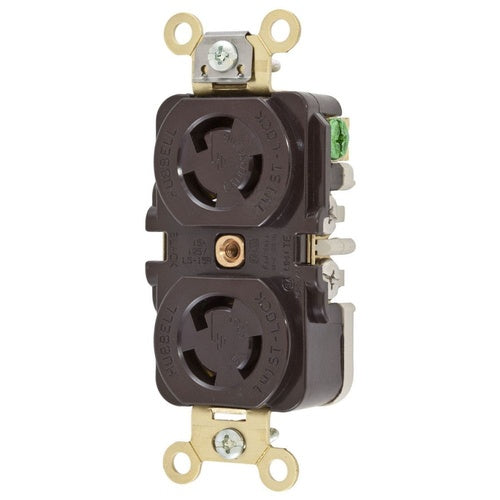

Hubbell HBL4700 Locking Duplex Receptacle-N L5-15R

Overview

Hubbell HBL4700 Locking Duplex Receptacle-N L5-15R

Product Specifications

• UPC: 78358500230
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Reinforced Thermoplastic Polyester (Face/Top)
• Color: Brown
• Wiring: Back, Side
• Mounting: Flush
• Approval: UL 498, CSA C22.2
• Additional Information: Wire Size 18 to 10 AWG (Solid/stranded Copper); Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Catalog Number: HBL4700
• Brand Name: Wiring Device-Kellems
• Type: Duplex
• Constructional Feature: Corrosion Resistant
• Configuration: L5-15R
• Voltage Rating: 125 Volt
• Current Rating: 15 Amp
• Number Of Poles: 2
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, DUPLEX FLUSH RECEPTACLE, 15A 125V, 2-POLE 3-WIRE GROUNDING, NEMA L5-15R, SCREW TERMINAL, BROWN.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Duplex Type; Reinforced Thermoplastic Polyester (Face/Top) Material; Brown Color; L5-15R Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; 125 Volt Voltage Rating; Flush Mounting; 15 Amp Current Rating; Grounding; 2 Pole(S); Corrosion Resistant; Back, Side Wiring; Twist-Lock [R] Brand; Wire Size 18 to 10 AWG (Solid/Stranded Copper); Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585002309
• SKU Name: hubw hbl4700

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
