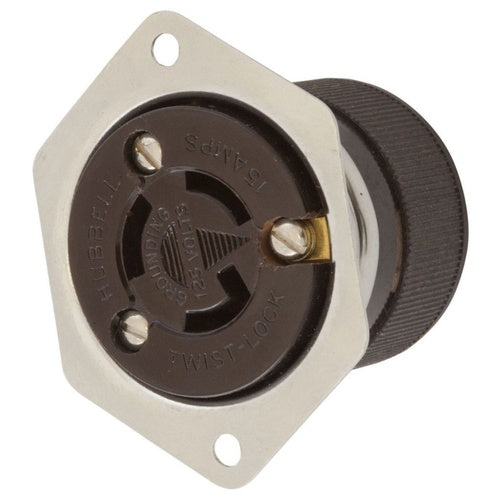

Hubbell HBL4715 Locking Flanged Outlet-Nema L5-15R

Overview

Hubbell HBL4715 Locking Flanged Outlet-Nema L5-15R

Product Specifications

• UPC: 78358523676
• Material: Stainless Steel Casing, Phenolic
• Color: Brown/Stainless
• Approval: UL 94/498, CSA C22.2
• Additional Information: Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL4715
• Brand Name: Twist-Lock[R]
• Configuration: L5-15R
• Voltage Rating: 125 V
• Current Rating: 15 Ampere
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, FLANGED RECEPTACLE, 15A 125V, 2-POLE 3-WIRE GROUNDING, NEMA L5-15R, SCREW TERMINAL, STAINLESS STEEL CASING, BROWN/STAINLESS .
• Category: Receptacles & Surge Protectors
• Full Technical Description: Stainless Steel Casing, Phenolic Material; Brown/Stainless Color; L5-15R Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 125 V Voltage Rating; 15 Ampere Current Rating; Grounding; 2 Pole(S); TWIST-LOCK[R] Brand; Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Flanged Receptacle Outlet
• Unspsc: 39121406
• UPC 12 Digit: 783585236766
• SKU Name: hubw hbl4715

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
