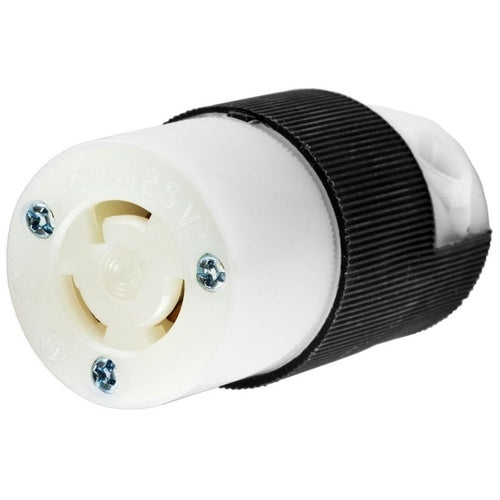

Hubbell HBL4729C Locking Connector-Nm L5-15R

Overview

Hubbell HBL4729C Locking Connector-Nm L5-15R

Product Specifications

• UPC: 78358517135
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon
• Color: Black/White
• Cord Size: 0.23 to 0.72 Inch
• Approval: UL 498, CSA C22.2
• Additional Information: Wire Size 18 to 10 AWG (Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Catalog Number: HBL4729C
• Brand Name: Wiring Device-Kellems
• Type: Polarized
• Constructional Feature: Impact/Chemical Resistant
• Configuration: L5-15R
• Voltage Rating: 125 Volt AC
• Current Rating: 15 Amp
• Number Of Poles: 2
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, FEMALE INSULGRIP CONNECTOR BODY, 15A 125V, 2-POLE 3-WIRE GROUNDING, NEMA L5-15R, SCREW TERMINAL, BLACK AND WHITE NYLON.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon (Housing), Clear Polycarbonate (Terminal Retainer), Brass (Contact/Terminal Screw), Nickel Plated Cold Rolled Steel (Terminal Clamp), Nickel Plated Steel (Assembly Screw) Material; Black/White Color; L5-15R Configuration; 3 Wire(S); UL, CSA Approval; 125 Volt Voltage Rating; 15 Amp Current Rating; Grounding; 2 Pole(S); Moisture Resistance; 0.23 to 0.72 Inch Cord Size; Twist-Lock [R], Insulgrip [R] Brand; Dimension 2.78 Inch Length X 1.41 Inch Width X 1.53 Inch Height; Wire Size 18 to 10 AWG Stranded Copper; Terminal Type #8-32 TPI (Phillips/Slotted/Robertson) Screw; Power Rating 0.5 HP; Dielectric Voltage 2000 Volt; Enclosure Type IP20; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585171357
• SKU Name: hubw hbl4729c
