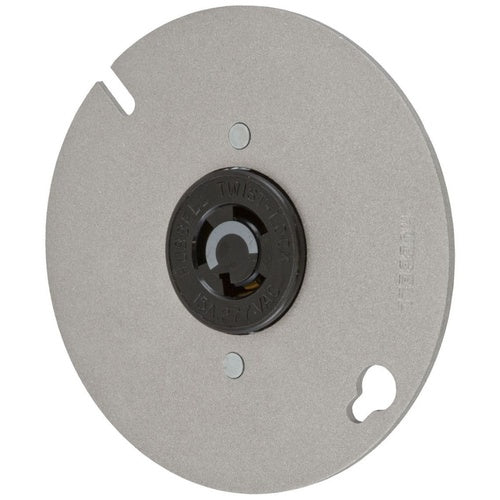

Hubbell HBL4761 Grounding Locking Receptacle On Cover

Overview

Hubbell HBL4761 Grounding Locking Receptacle On Cover

Product Specifications

• UPC: 78358523689
• Number Of Wires: 3
• Ground Type: Grounding
• Face Outer Diameter: 1.38 Inch
• Material: Nylon Face
• Color: Black
• Wiring: Back, Side
• Mounting: Panel Mount
• Approval: UL 94/498, CSA C22.2
• Catalog Number: HBL4761
• Brand Name: Twist-Lock[R]
• Model: HBL
• Type: Single Locking
• Configuration: L7-15R
• Voltage Rating: 277 VAC
• Current Rating: 15 Ampere
• Number Of Poles: 2
• Catalog Description: TWIST-LOCK INDUSTRIAL SINGLE FLUSH RECEPTACLE, 15A 277V AC, 2-POLE 3-WIRE GROUNDING, NEMA L7-15R, SCREW TERMINAL, MOUNT ED TO 4"BOX COVER
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Locking Type; Nylon Face Material; Black Color; L7-15R Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 277 VAC Voltage Rating; Panel Mount Mounting; 15 Ampere Current Rating; Grounding; 2 Pole(S); Back, Side Wiring; 1.38 Inch Face Outer Diameter; TWIST-LOCK[R] Brand; HBL Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585236896
• SKU Name: hubw hbl4761

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
