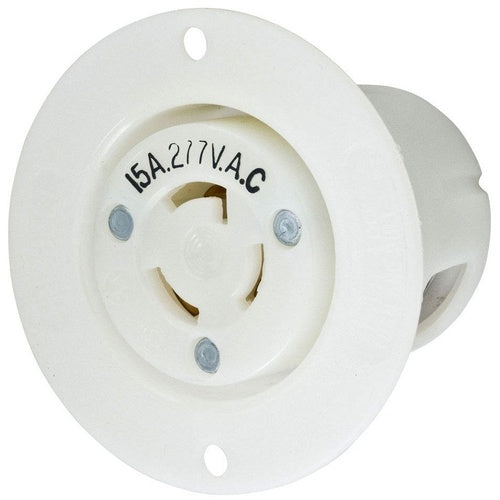

Hubbell HBL4785C Locking Receptacle-Nm L7-15R

Overview

Hubbell HBL4785C Locking Receptacle-Nm L7-15R

Product Specifications

• UPC: 78358517210
• Material: Nylon Casing
• Color: White
• Approval: UL 94/498, CSA C22.2
• Additional Information: Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL4785C
• Brand Name: Twist-Lock[R]
• Configuration: L7-15R
• Voltage Rating: 277 VAC
• Current Rating: 15 Ampere
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, INSULGRIP FLANGED RECEPTACLE, 15A 277V AC, 2-POLE 3-WIRE GROUNDING, NEMA L7-15R, SCREW TERMINAL, NYLON CASING, BACK WIRED, WHITE.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Nylon Casing Material; White Color; L7-15R Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 277 VAC Voltage Rating; 15 Ampere Current Rating; Grounding; 2 Pole(S); TWIST-LOCK[R], INSULGRIP[R] Brand; Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Flanged Receptacle Outlet
• Unspsc: 39121406
• UPC 12 Digit: 783585172101
• SKU Name: hubw hbl4785c
