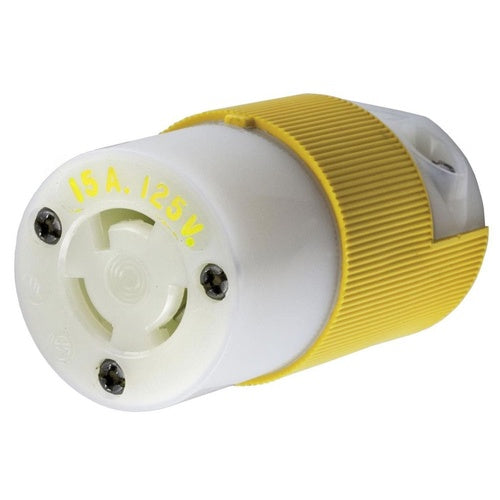

Hubbell HBL47CM29C Locking Connector Non-Metallic L5-15

Overview

Hubbell HBL47CM29C Locking Connector Non-Metallic L5-15

Product Specifications

• UPC: 78358516070
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon
• Color: White/Yellow
• Cord Size: 0.23 to 0.72 Inch
• Approval: UL 94/498, CSA C22.2
• Additional Information: Enclosure IP20
• Catalog Number: HBL47CM29C
• Brand Name: Twist-Lock[R]
• Model: HBL
• Type: Polarized
• Constructional Feature: Impact Resistant, Chemical Resistant
• Configuration: L5-15R
• Voltage Rating: 125 VAC
• Current Rating: 15 Ampere
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, MARINE GRADE, FEMALE INSULGRIP CONNECTOR BODY, 15A 125V, 2-POLE 3-WIRE GROUNDING, NEMA L5-15R, SCREW TERMINAL, YELLOW AND WHITE NYLON.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; White/Yellow Color; L5-15R Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 125 VAC Voltage Rating; 15 Ampere Current Rating; Grounding; 2 Pole(S); Impact Resistant, Chemical Resistant; 0.23 to 0.72 Inch Cord Size; TWIST-LOCK[R], INSULGRIP[R] Brand; Enclosure IP20; HBL Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585160702
• SKU Name: hubw hbl47cm29c
