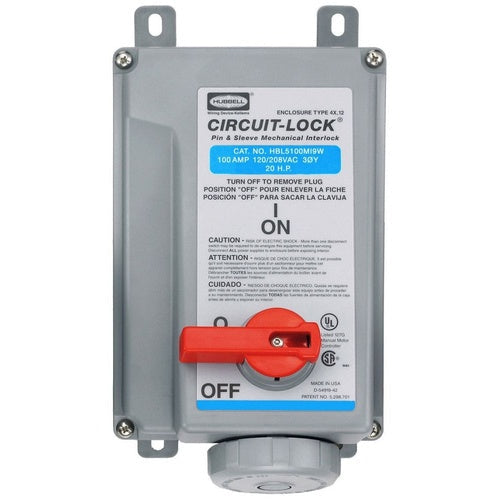

Hubbell HBL5100MI9W Pin And Sleeve, Iec, Mechanically Interlocked, 4P5W,100A 120/208V,Watertight

Overview

Hubbell HBL5100MI9W Pin And Sleeve, Iec, Mechanically Interlocked, 4P5W,100A 120/208V,Watertight

Product Specifications

• UPC: 78358540609
• Door Type: Spring Loaded Cover
• Hub Type: 1-1/4 Inch NPT
• Material: Valox
• Enclosure: NEMA 4X/12, IP67
• Additional Information: Power Rating 20 HP at 120/208 VAC 3 Phase; Overall Dimension 8.75 Inch W x 9.3 Inch D x 13.65 Inch H; Operating Temperature -40 to 75 Deg C; Approval UL, CSA
• Catalog Number: HBL5100MI9W
• Brand Name: Circuit-Lock[R]
• Type: Mechanically Interlocked
• Constructional Feature: Watertight
• Voltage Rating: 120/208 V Star 3-Phase
• Current Rating: 100 Ampere
• Number Of Poles: 4
• Number Of Wires: 5
• Catalog Description: HEAVY DUTY PRODUCTS, IEC PIN AND SLEEVE DEVICES, INDUSTRIAL GRADE, FEMALE, MECHANICALLY INTERLOCKED RECEPTACLE, 100A 3-PHASE WYE 120/208V AC, 4-POLE 5-WIRE GROUNDING, TERMINAL SCREWS
• Category: Pin & Sleeve Devices
• Full Technical Description: Mechanically Interlocked Type; Valox Material; 5 Wire(S); 120/208 V Star 3-Phase Voltage Rating; NEMA 4X/12, IP67 Enclosure; 100 Ampere Current Rating; 4 Pole(S); Watertight; 1-1/4 Inch NPT Hub Type; Spring Loaded Cover; CIRCUIT-LOCK[R] Brand; Power Rating 20 HP at 120/208 VAC 3 Phase; Overall Dimension 8.75 Inch W X 9.3 Inch D X 13.65 Inch H; Operating Temperature -40 to 75 Deg C; Approval UL, CSA
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Pin and Sleeve Receptacle with Disconnect
• Unspsc: 39121406
• UPC 12 Digit: 783585406091
• SKU Name: hubw hbl5100mi9w
