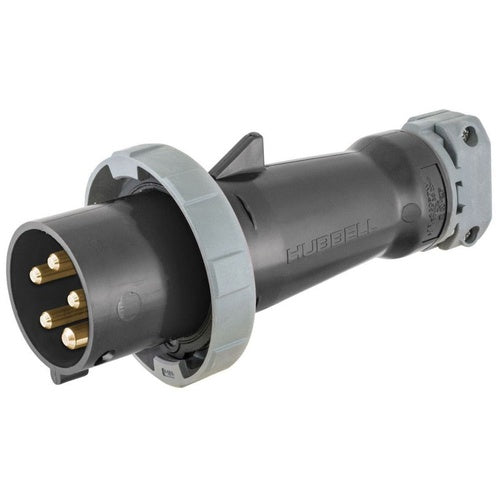

Hubbell HBL5100P5W Pin And Sleeve, Plug, 4P5W, 100A 347/600V,4X/69K

Overview

Hubbell HBL5100P5W Pin And Sleeve, Plug, 4P5W, 100A 347/600V,4X/69K

Product Specifications

• UPC: 78358540507
• Minimum Cable Outer Diameter: 1.065 Inch
• Maximum Cable Outer Diameter: 1.94 Inch
• Material: Zytel ST801 Nylon
• Approval: UL 1682/1686C2, CSA C22.2
• Additional Information: Enclosure IP67; Pin Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard IEC 60309-1/60309-2
• Catalog Number: HBL5100P5W
• Model: HBL
• Type: Polarized
• Constructional Feature: Impact Resistant, Watertight
• Voltage Rating: 347/600 V Star 3-Phase
• Current Rating: 100 Ampere
• Number Of Poles: 4
• Number Of Wires: 5
• Catalog Description: HEAVY DUTY PRODUCTS, IEC PIN AND SLEEVE DEVICES, INDUSTRIAL GRADE, MALE, PLUG, 100A 3-PHASE WYE 347/600V AC, 4- POLE 5-WIRE GROUNDING, TERMINAL SCREWS, BLACK, WATERTIGHT
• Category: Pin & Sleeve Devices
• Full Technical Description: Polarized Type; Zytel ST801 Nylon Material; 1.065 Inch min. Cable Outer Diameter; 1.94 Inch Max. Cable Outer Diameter; 5 Wire(S); UL 1682/1686C2, CSA C22.2 Approval; 347/600 V Star 3-Phase Voltage Rating; 100 Ampere Current Rating; 4 Pole(S); Impact Resistant, Watertight; Enclosure IP67; Pin Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard IEC 60309-1/60309-2; HBL Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585405070
• SKU Name: hubw hbl5100p5w
