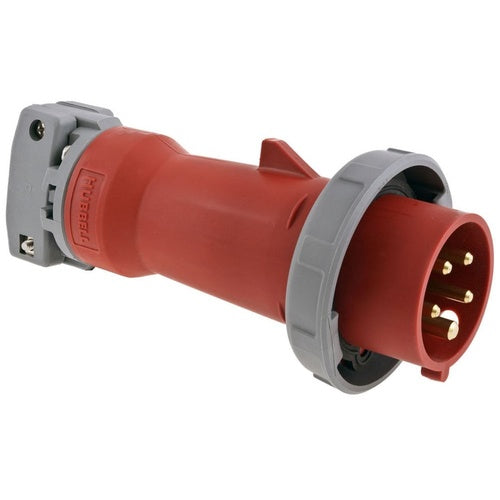

Hubbell HBL520P7W Pin And Sleeve, Iec, Plug, 4P5W, 20A 277/480V,4X/69K

Overview

Hubbell HBL520P7W Pin And Sleeve, Iec, Plug, 4P5W, 20A 277/480V,4X/69K

Product Specifications

• UPC: 78358540534
• Minimum Cable Outer Diameter: 0.33 Inch
• Maximum Cable Outer Diameter: 0.83 Inch
• Material: Zytel ST801 Nylon
• Approval: UL 1682/1686C2, CSA C22.2
• Additional Information: Color Red; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Applicable Standard IEC 60309-1/60309-2
• Catalog Number: HBL520P7W
• Brand Name: Wiring Device-Kellems
• Type: Polarized
• Constructional Feature: Impact/Chemical Resistant, Water Tight
• Voltage Rating: 277/480 Volt AC Star 3-Phase
• Current Rating: 20 Amp
• Number Of Poles: 4
• Number Of Wires: 5
• Catalog Description: HEAVY DUTY IEC PIN AND SLEEVE INDUSTRIAL GRADE MALE PLUG 20A 3-PHASE WYE 277/480V AC, 4-POLE 5-WIRE GROUNDING, TERMINAL SCREWS, WATERTIGHT
• Category: Pin & Sleeve Devices
• Full Technical Description: Polarized Type; Zytel ST801 Nylon Material; 0.33 Inch min. Cable Outer Diameter; 0.83 Inch Max. Cable Outer Diameter; 5 Wire(S); UL 1682/1686C2, CSA C22.2 Approval; 277/480 Volt AC Star 3-Phase Voltage Rating; 20 Amp Current Rating; 4 Pole(S); Impact/Chemical Resistant, Water Tight; Color Red; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Applicable Standard IEC 60309-1/60309-2
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585405346
• SKU Name: hubw hbl520p7w
