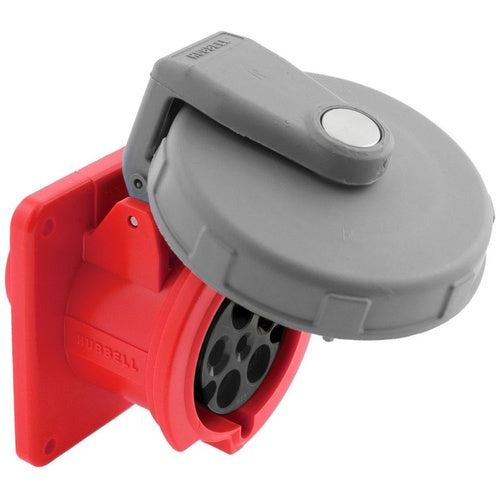

Hubbell HBL520R7W Pin And Sleeve, Iec, Receptacle, 4P5W, 20A 277/480V,4X/69K

Overview

Hubbell HBL520R7W Pin And Sleeve, Iec, Receptacle, 4P5W, 20A 277/480V,4X/69K

Product Specifications

• UPC: 78358540537
• Door Type: Spring Cover
• Material: Zytel 101 Nylon
• Grade: Industrial
• Approval: UL, CSA
• Additional Information: Color Red; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Applicable Standard IEC 60309-1 IEC 60309-2
• Catalog Number: HBL520R7W
• Brand Name: Wiring Device-Kellems
• Type: Mechanically Interlocked
• Constructional Feature: Corrosion Resistant, Water Tight
• Voltage Rating: 277/480 Volt 3-Phase
• Current Rating: 20 Amp
• Number Of Poles: 4
• Number Of Wires: 5
• Catalog Description: HEAVY DUTY PRODUCTS, IEC PIN AND SLEEVE DEVICES, INDUSTRIAL GRADE, FEMALE RECEPTACLE, 20A 3-PHASE WYE 277/480V AC, 4-POLE 5-WIRE GROUNDING, TERMINAL SCREWS, RED, WATERTIGHT
• Category: Pin & Sleeve Devices
• Full Technical Description: Mechanically Interlocked Type; Zytel 101 Nylon Material; 5 Wire(S); Industrial Grade; UL, CSA Approval; 277/480 Volt 3-Phase Voltage Rating; 20 Amp Current Rating; 4 Pole(S); Corrosion Resistant, Water Tight; Spring Cover; Color Red; Enclosure Rating IP67; Temperature Rating -40 to 75 Deg C; Applicable Standard IEC 60309-1 IEC 60309-2
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585405377
• SKU Name: hubw hbl520r7w
