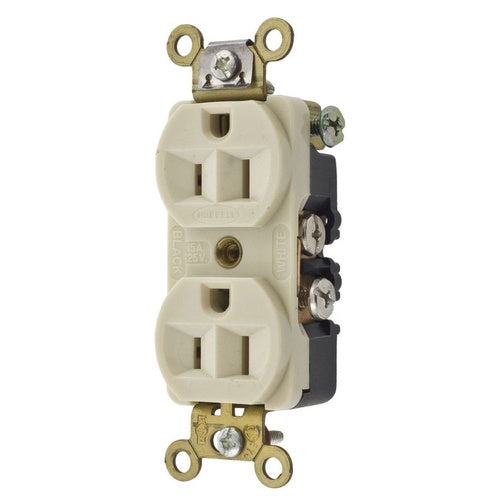

Hubbell HBL5242I Duplex Receptacle Nema5-15R

Overview

Hubbell HBL5242I Duplex Receptacle Nema5-15R

Product Specifications

• UPC: 78358543472
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon (Face)
• Color: Ivory
• Wiring: Side
• Grade: Extra Heavy-Duty
• Approval: UL 498, CSA C22.2, FSUL WC596
• Additional Information: Contact Material Brass; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL5242I
• Brand Name: HBL[R]
• Type: Duplex
• Constructional Feature: Impact Resistant
• Configuration: 5-15R
• Voltage Rating: 125 V
• Current Rating: 15 Ampere
• Number Of Poles: 2
• Catalog Description: STRAIGHT BLADE DUPLEX RECEPTACLE, COMMERCIAL/INDUSTRIAL GRADE, 2-POLE 3-WIRE GROUNDING, 15A 125V, 5-15R
• Category: Receptacles & Surge Protectors
• Full Technical Description: Duplex Type; Nylon (Face) Material; Ivory Color; 5-15R Configuration; 3 Wire(S); Extra Heavy-Duty Grade; UL 498, CSA C22.2, FSUL WC596 Approval; 125 V Voltage Rating; 15 Ampere Current Rating; Grounding; 2 Pole(S); Impact Resistant; Side Wiring; HBL[R] Brand; Contact Material Brass; Operating Temperature -40 to 75 Deg C
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585434728
• SKU Name: hubw hbl5242i

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
