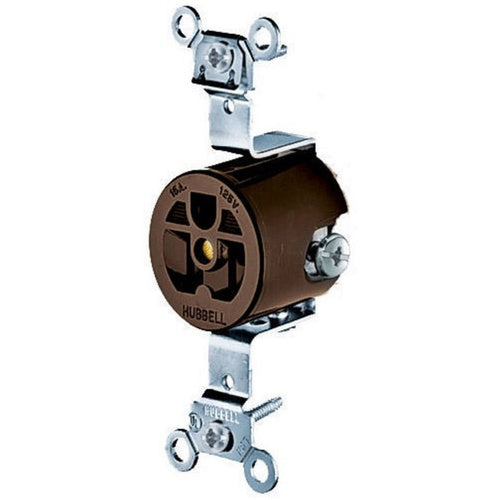

Hubbell HBL5251 Single Receptacle, Commercial/Industrial Grade,15A 125V,5-15R, Brown

Overview

Hubbell HBL5251 Single Receptacle, Commercial/Industrial Grade,15A 125V,5-15R, Brown

Product Specifications

• UPC: 78358501381
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon (Face), PBT (Base)
• Color: Brown
• Wiring: Side
• Grade: Extra Heavy Duty
• Approval: UL 94/498, CSA C22.2, Fed.Spec W-C-596
• Additional Information: Wire Size 14 to 10 AWG; Contact Material Brass; Temperature Rating -40 to 75 Deg C
• Catalog Number: HBL5251
• Brand Name: HBL[R]
• Type: Finder Groove Face Single
• Constructional Feature: Impact Resistant
• Configuration: 5-15R
• Voltage Rating: 125 Volt
• Current Rating: 15 Amp
• Number Of Poles: 2
• Catalog Description: STRAIGHT BLADE DEVICES, RECEPTACLES, SINGLE, INDUSTRIAL GRADE, 2-POLE 3-WIRE GROUNDING, 15A 125V, 5-15R, BROWN, SINGLE PACK.
• Category: Wall Plates & Covers
• Full Technical Description: Finder Groove Face Single Type; Nylon (Face), Pbt (Base) Material; Brown Color; 5-15R Configuration; 3 Wire(S); Extra Heavy Duty Grade; UL 94/498, CSA C22.2, FED.SPEC W-C-596 Approval; 125 Volt Voltage Rating; 15 Amp Current Rating; Grounding; 2 Pole(S); Impact Resistant; Side Wiring; HBL[R] Brand; Wire Size 14 to 10 AWG; Contact Material Brass; Temperature Rating -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585013817
• SKU Name: hubw hbl5251

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
