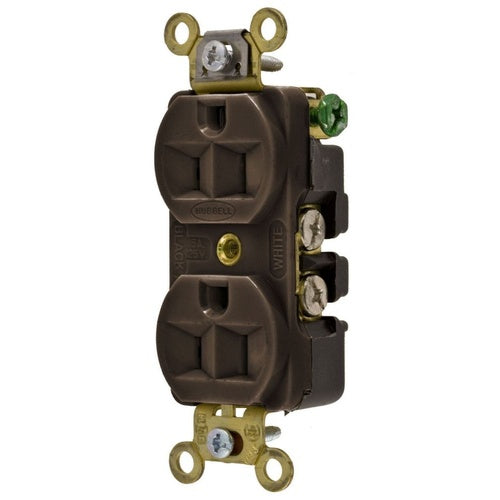

Hubbell HBL5252 Duplex Industrial Grade Receptacle Nema5-15R

Overview

Hubbell HBL5252 Duplex Industrial Grade Receptacle Nema5-15R

Product Specifications

• UPC: 78358543484
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon (Face), Reinforced Thermoplastic Polyester (Base)
• Color: Brown
• Wiring: Back, Side
• Grade: Extra Heavy Duty Industrial, Slender/Compact
• Approval: UL 498, CSA C22.2
• Additional Information: Power Rating 0.5 HP; Material Brass (Contact/Strap); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94 V-0; Applicable Standard Federal Specification WC-596G, NEMA WD-6
• Catalog Number: HBL5252
• Brand Name: Wiring Device-Kellems
• Model: HBL5252
• Type: Duplex
• Constructional Feature: Impact Resistant
• Configuration: 5-15R
• Voltage Rating: 125 Volt
• Current Rating: 15 Amp
• Catalog Description: STRAIGHT BLADE DEVICES, RECEPTACLES, DUPLEX, INDUSTRIAL GRADE, 2-POLE 3-WIRE GROUNDING, 15A 125V, 5-15R, BROWN, SINGLE PACK.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Duplex Type; Nylon (Face), Reinforced Thermoplastic Polyester (Base) Material; Brown Color; 5-15R Configuration; 3 Wire(S); Extra Heavy Duty Industrial, Slender/Compact Grade; UL 498, CSA C22.2 Approval; 125 Volt Voltage Rating; 15 Amp Current Rating; Grounding; 2 Pole(S); Impact Resistant; Back, Side Wiring; Hbl [R] Brand; Power Rating 0.5 HP; Material Brass (Contact/Strap); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94 V-0; Applicable Standard Federal Specification WC-596G, NEMA Wd-6; HBL5252 Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585434841
• SKU Name: hubw hbl5252

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
