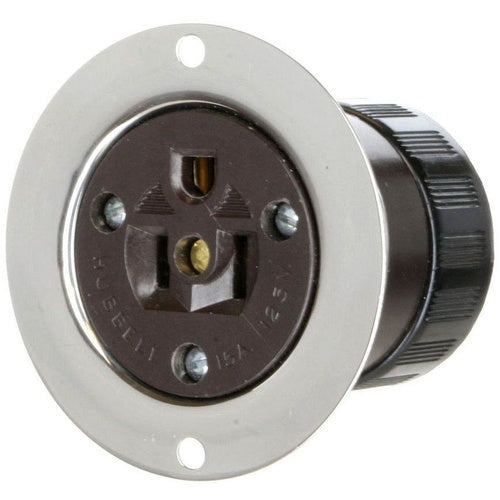

Hubbell HBL5279 Flanged Outlet Nema5-15R

Overview

Hubbell HBL5279 Flanged Outlet Nema5-15R

Product Specifications

• UPC: 78358501336
• Wiring: Back
• Approval: UL 498, CSA C22.2
• Additional Information: Material Phenolic; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL5279
• Configuration: 5-15R
• Voltage Rating: 125 V
• Current Rating: 15 Ampere
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Color: Brown
• Catalog Description: STRAIGHT BLADE INLETS, FLANGED, COMMERCIAL/INDUSTRIAL GRADE, 2-POLE 3-WIRE GROUNDING, 15A 125V, 5-15R, STAINLESS,BROWN
• Category: Receptacles & Surge Protectors
• Full Technical Description: Brown Color; 5-15R Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; 125 V Voltage Rating; 15 Ampere Current Rating; Grounding; 2 Pole(S); Back Wiring; Material Phenolic; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Straight Blade Flanged Receptacle Outlet
• Unspsc: 39121406
• UPC 12 Digit: 783585013367
• SKU Name: hubw hbl5279
