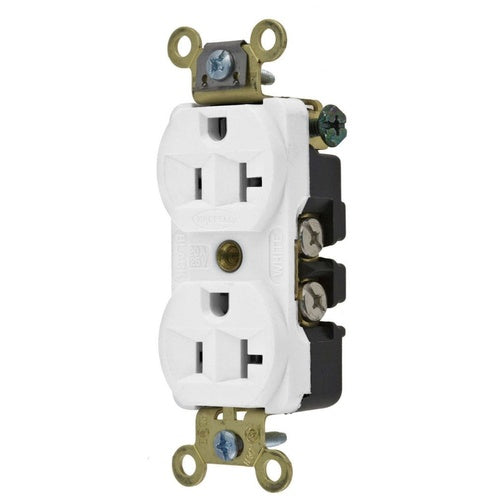

Hubbell HBL5352W Duplex Industrial Grade Receptacle Nema5-20R White

Overview

Hubbell HBL5352W Duplex Industrial Grade Receptacle Nema5-20R White

Product Specifications

• UPC: 78358543508
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon (Face), RTP (Base)
• Color: White
• Wiring: Back, Side
• Grade: Extra Heavy Duty
• Approval: UL 94/498, CSA C22.2, Fed.Spec W-C-596-G
• Additional Information: Wire Size 12 to 10 AWG; Contact Material Brass; Temperature Rating -40 to 75 Deg C
• Catalog Number: HBL5352W
• Brand Name: HBL[R]
• Type: Finder Groove Face Duplex
• Constructional Feature: Impact Resistant
• Configuration: 5-20R
• Voltage Rating: 125 Volt
• Current Rating: 20 Amp
• Number Of Poles: 2
• Catalog Description: STRAIGHT BLADE DEVICES, RECEPTACLES, DUPLEX, INDUSTRIAL GRADE, 2-POLE 3-WIRE GROUNDING, 20A 125V, 5-20R, WHITE, SINGLE PACK.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Finder Groove Face Duplex Type; Nylon (Face), Rtp (Base) Material; White Color; 5-20R Configuration; 3 Wire(S); Extra Heavy Duty Grade; UL 94/498, CSA C22.2, FED.SPEC W-C-596-G Approval; 125 Volt Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S); Impact Resistant; Back, Side Wiring; HBL[R] Brand; Wire Size 12 to 10 AWG; Contact Material Brass; Temperature Rating -40 to 75 Deg C
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585435084
• SKU Name: hubw hbl5352w

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
