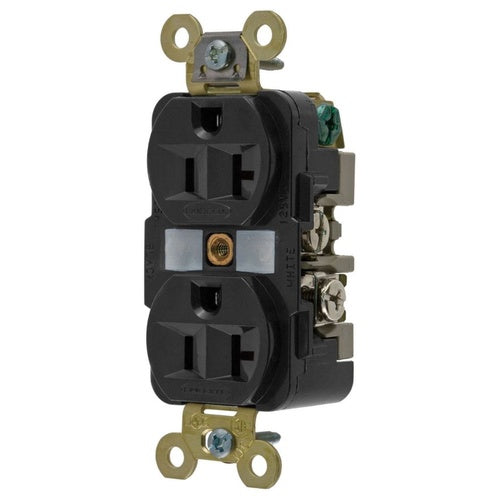

Hubbell HBL5362BK Duplex Industrial Grade Receptacle Nema5-20R Black

Overview

Hubbell HBL5362BK Duplex Industrial Grade Receptacle Nema5-20R Black

Product Specifications

• UPC: 78358543524
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon (Face), Polybutylene Terephthalate (Base)
• Color: Black
• Wiring: Back, Side
• Grade: Extra Heavy-Duty, Specification
• Approval: UL 498, CSA C22.2, FSUL WC596
• Additional Information: Contact/Strap Material Brass; Operating Temperature -40 to 75 Deg C; Used On 4 Inch Round Cover
• Catalog Number: HBL5362BK
• Brand Name: HBL[R]
• Type: Duplex
• Constructional Feature: Impact Resistant
• Configuration: 5-20R
• Voltage Rating: 125 V
• Current Rating: 20 Ampere
• Number Of Poles: 2
• Catalog Description: STRAIGHT BLADE DEVICES, RECEPTACLES, DUPLEX, INDUSTRIAL GRADE, 2-POLE 3-WIRE GROUNDING, 20A 125V, 5-20R, BLACK, SINGLE PACK
• Category: Receptacles & Surge Protectors
• Full Technical Description: Duplex Type; Nylon (Face), Polybutylene Terephthalate (Base) Material; Black Color; 5-20R Configuration; 3 Wire(S); Extra Heavy-Duty, Specification Grade; UL 498, CSA C22.2, FSUL WC596 Approval; 125 V Voltage Rating; 20 Ampere Current Rating; Grounding; 2 Pole(S); Impact Resistant; Back, Side Wiring; HBL[R] Brand; Contact/Strap Material Brass; Operating Temperature -40 to 75 Deg C; Used on 4 Inch Round Cover
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585435244
• SKU Name: hubw hbl5362bk

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
