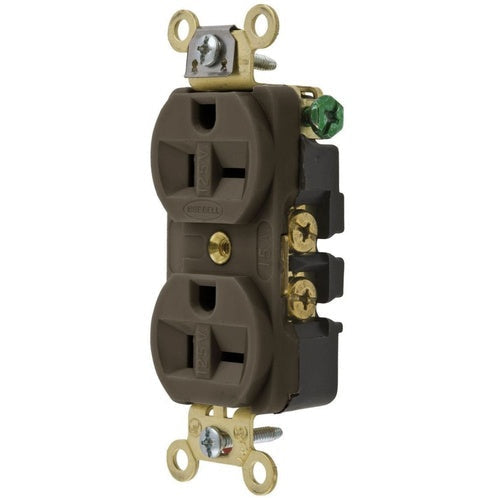

Hubbell HBL5392 Duplex Receptacle Nema5-20R

Overview

Hubbell HBL5392 Duplex Receptacle Nema5-20R

Product Specifications

• UPC: 78358501474
• Catalog Number: HBL5392
• Device 1: 125 V 20 Ampere 2-Pole 3-Wire Straight Blade, 5-20R
• Device 2: 125 V 20 Ampere 2-Pole 3-Wire Straight Blade
• Color: Brown
• Wiring: Back, Side
• Approval: UL 498, CSA C22.2
• Additional Information: Material Nylon (Face), Reinforced Polyethylene (No Suggestions) (Base); Ground Type Grounding; Temperature Rating -40 to 75 Deg C
• Catalog Description: STRAIGHT BLADE DUPLEX RECEPTACLE, INDUSTRIAL GRADE, 2-POLE 3-WIRE GROUNDING, 20A 125V, 5-20R
• Category: Receptacles & Surge Protectors
• Full Technical Description: Brown Color; UL 498, CSA C22.2 Approval; Back, Side Wiring; 125 V 20 Ampere 2-Pole 3-Wire Straight Blade, 5-20R Device 1; 125 V 20 Ampere 2-Pole 3-Wire Straight Blade Device 2; Material Nylon (Face), Reinforced Polyethylene (No Suggestions) (Base); Ground Type Grounding; Temperature Rating -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Combination Duplex Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585014746
• SKU Name: hubw hbl5392

Resources

• Manufacturer Spec Sheet
