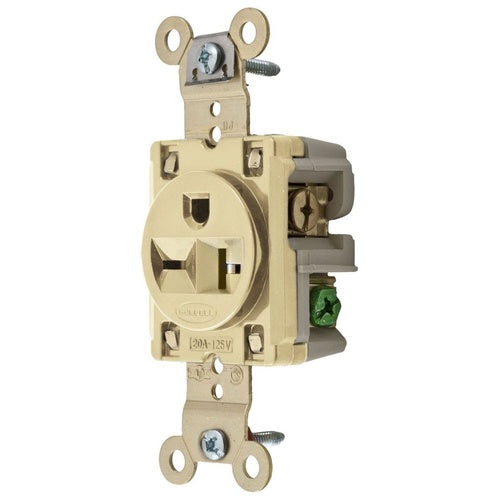

Hubbell HBL5461I Single Receptacle, Industrial Grade, 20A 250V, 6-20R, Ivory

Overview

Hubbell HBL5461I Single Receptacle, Industrial Grade, 20A 250V, 6-20R, Ivory

Product Specifications

• UPC: 78358501396
• Material: Nylon (Face)
• Color: Ivory
• Wiring: Back/Side
• Grade: Industrial, Commercial
• Approval: UL 498, CSA C22.2
• Additional Information: Overall Dimension 3.28 Inch Length x 1.63 Inch Width x 1.19 Inch Height; Wire Size 14 to 12 AWG; Power Rating 2 HP; Dielectric Strength 2000 Volt; Mounting Type Screw; Temperature Rating -40 to 75 Deg C; Applicable Standard NEMA WD-6, Federal Specificatio
• Catalog Number: HBL5461I
• Type: Finder Groove Face, Single
• Configuration: 6-20R
• Voltage Rating: 250 Volt AC 1-Phase
• Current Rating: 20 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Catalog Description: STRAIGHT BLADE DEVICES, RECEPTACLES, SINGLE, SPECIFICATION GRADE, 2-POLE 3-WIRE GROUNDING, 20A 250V, 6-20R, IVORY, SINGLE PACK
• Category: Wall Plates & Covers
• Full Technical Description: Single Type; Nylon (Face), Pbt (Base) Material; Ivory Color; 6-20R Configuration; 3 Wire(S); Extra Heavy Duty Industrial Specification Grade; UL 498, CSA C22.2 Approval; 250 Volt Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S); Impact Resistant; Back, Side Wiring; Hbl [R] Brand; Power Rating 2 HP; Material Brass (Contact/Strap); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94 V-2 (Top), UL 94 V-0 and UL 94-5 VA (Base); Applicable Standard NEMA Wd-6; HBL5461 Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585013961
• SKU Name: hubw hbl5461i
