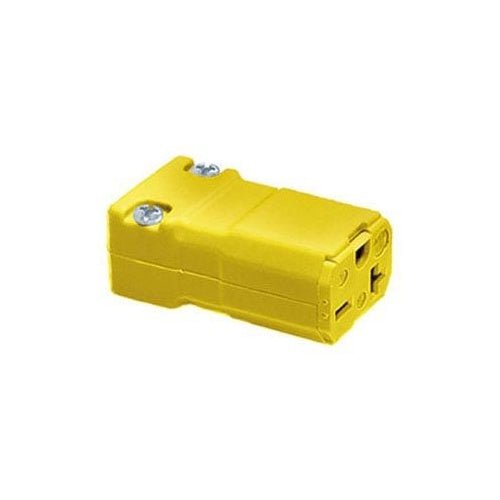

Hubbell HBL5469VY Valise Connector, 20A 250V, 6-20R, Vy

Overview

Hubbell HBL5469VY Valise Connector, 20A 250V, 6-20R, Vy

Product Specifications

• UPC: 78358501319
• Ground Type: Grounding
• Color: Yellow
• Cord Size: 0.22 to 0.66 Inch
• Material: Nylon
• Grade: Industrial, Commercial
• Approval: UL 498, CSA C22.2
• Additional Information: Overall Dimension 2.38 Inch Length x 1.25 Inch Width x 0.88 Inch Height; Operating Temperature -40 to 75 Deg C; Enclosure Rating IP20; Applicable Standard NEMA WD 1
• Catalog Number: HBL5469VY
• Brand Name: Valise[R]
• Constructional Feature: Crush/Impact Resistant
• Configuration: 6-20R
• Voltage Rating: 250 Volt
• Current Rating: 20 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: STRAIGHT BLADE DEVICES, FEMALE CONNECTOR BODY, VALISE SERIES, INDUSTRIAL/COMMERCIAL GRADE, STRAIGHT, 2-POLE 3- WIRE GROUNDING, 20A 250V, 6-20R, YELLOW, SINGLE PACK.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Nylon Material; Yellow Color; 6-20R Configuration; 3 Wire(S); Industrial, Commercial Grade; UL 498, CSA C22.2 Approval; 250 Volt Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S); Crush/Impact Resistant; 0.22 to 0.66 Inch Cord Size; VALISE[R] Brand; Overall Dimension 2.38 Inch Length X 1.25 Inch Width X 0.88 Inch Height; Operating Temperature -40 to 75 Deg C; Enclosure Rating IP20; Applicable Standard NEMA Wd 1
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Straight Blade Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585013190
• SKU Name: hubw hbl5469vy

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
