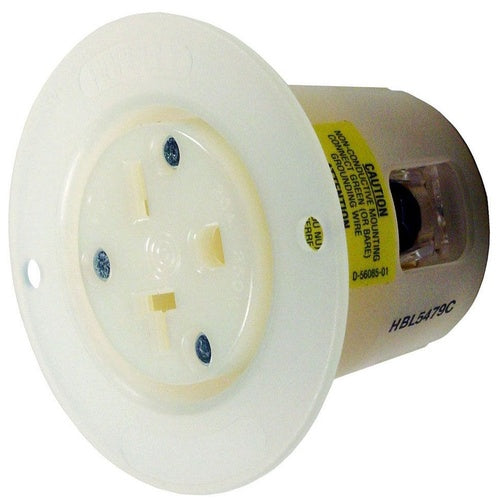

Hubbell HBL5479C Flange Receptacle-Nema6-20R

Overview

Hubbell HBL5479C Flange Receptacle-Nema6-20R

Product Specifications

• UPC: 78358517505
• Grade: Industrial, Commercial
• Wiring: Back
• Approval: UL, CSA C22.2
• Additional Information: Wire Size 18 to 10 AWG; Material Nylon Casing; Enclosure Rating IP44; Temperature Rating -40 to 75 Deg C
• Catalog Number: HBL5479C
• Configuration: 6-20R
• Voltage Rating: 250 Volt
• Current Rating: 20 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Color: White
• Catalog Description: STRAIGHT BLADE DEVICES, RECEPTACLES, COMMERCIAL/INDUSTRIAL GRADE, 2-POLE 3-WIRE GROUNDING, 20A 250V, 6-20R, WHITE, SINGLE PACK.
• Category: Receptacles & Surge Protectors
• Full Technical Description: White Color; 6-20R Configuration; 3 Wire(S); Industrial, Commercial Grade; UL, CSA C22.2 Approval; 250 Volt Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S); Back Wiring; Wire Size 18 to 10 AWG; Material Nylon Casing; Enclosure Rating IP44; Temperature Rating -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Straight Blade Flanged Receptacle Outlet
• Unspsc: 39121406
• UPC 12 Digit: 783585175058
• SKU Name: hubw hbl5479c

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
