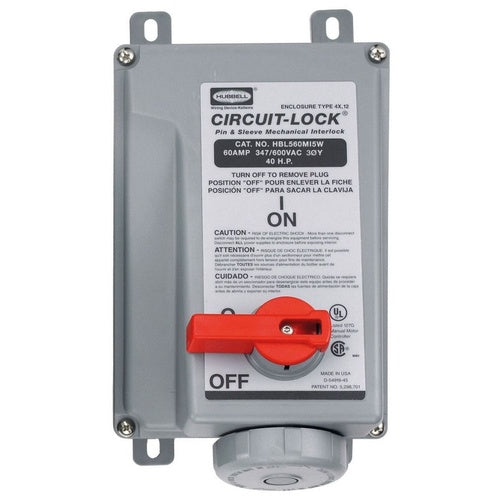

Hubbell HBL560MI5W Pin And Sleeve, Iec, Mechanically Interlocked, 4P5W, 60A 347/600V,Watertight

Overview

Hubbell HBL560MI5W Pin And Sleeve, Iec, Mechanically Interlocked, 4P5W, 60A 347/600V,Watertight

Product Specifications

• UPC: 78358540615
• Door Type: Spring Loaded Cover
• Hub Type: 1-1/4 Inch NPT
• Material: Valox
• Enclosure: NEMA 4X/12, IP67
• Additional Information: Power Rating 40 HP at 347/600 VAC 3 Phase; Overall Dimension 8.75 Inch W x 8.6 Inch D x 13.65 Inch H; Operating Temperature -40 to 75 Deg C; Approval UL, CSA
• Catalog Number: HBL560MI5W
• Brand Name: Circuit-Lock[R]
• Type: Mechanically Interlocked
• Constructional Feature: Watertight
• Voltage Rating: 347/600 V Star 3-Phase
• Current Rating: 60 Ampere
• Number Of Poles: 4
• Number Of Wires: 5
• Catalog Description: HEAVY DUTY PRODUCTS, IEC PIN AND SLEEVE DEVICES, INDUSTRIAL GRADE, FEMALE, MECHANICALLY INTERLOCKED RECEPTACLE, 60A 3-PHASE WYE 347/600V AC , 4-POLE 5-WIRE GROUNDING, TERMINAL SCREWS
• Category: Pin & Sleeve Devices
• Full Technical Description: Mechanically Interlocked Type; Valox Material; 5 Wire(S); 347/600 V Star 3-Phase Voltage Rating; NEMA 4X/12, IP67 Enclosure; 60 Ampere Current Rating; 4 Pole(S); Watertight; 1-1/4 Inch NPT Hub Type; Spring Loaded Cover; CIRCUIT-LOCK[R] Brand; Power Rating 40 HP at 347/600 VAC 3 Phase; Overall Dimension 8.75 Inch W X 8.6 Inch D X 13.65 Inch H; Operating Temperature -40 to 75 Deg C; Approval UL, CSA
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Pin and Sleeve Receptacle with Disconnect
• Unspsc: 39121406
• UPC 12 Digit: 783585406152
• SKU Name: hubw hbl560mi5w
