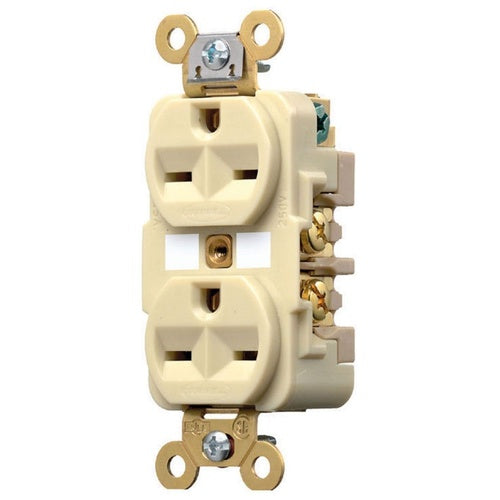

Hubbell HBL5662I Duplex Industrial Grade Receptacle-Nema6-15R

Overview

Hubbell HBL5662I Duplex Industrial Grade Receptacle-Nema6-15R

Product Specifications

• UPC: 78358543558
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Nylon (Face), PBT (Base)
• Color: Ivory
• Wiring: Back, Side
• Grade: Extra Heavy Duty Industrial Specification
• Approval: UL 498, CSA C22.2
• Additional Information: Power Rating 1.5 HP; Material Brass (Contact/Strap); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94 V-2 (Top), UL 94 V-0 and UL 94-5 VA (Base); Applicable Standard NEMA WD-6
• Catalog Number: HBL5662I
• Brand Name: Wiring Device-Kellems
• Model: HBL5662
• Type: Duplex
• Constructional Feature: Impact Resistant
• Configuration: 6-15R
• Voltage Rating: 250 Volt
• Current Rating: 15 Amp
• Catalog Description: STRAIGHT BLADE DEVICES, RECEPTACLES, DUPLEX, SPECIFICATION GRADE, 2-POLE 3-WIRE GROUNDING, 15A 250V, 6-15R, IVORY, SINGLE PACK
• Category: Receptacles & Surge Protectors
• Full Technical Description: Duplex Type; Nylon (Face), Pbt (Base) Material; Ivory Color; 6-15R Configuration; 3 Wire(S); Extra Heavy Duty Industrial Specification Grade; UL 498, CSA C22.2 Approval; 250 Volt Voltage Rating; 15 Amp Current Rating; Grounding; 2 Pole(S); Impact Resistant; Back, Side Wiring; HBL[R] Brand; Power Rating 1.5 HP; Material Brass (Contact/Strap); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94 V-2 (Top), UL 94 V-0 and UL 94-5 VA (Base); Applicable Standard NEMA Wd-6; HBL5662 Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585435589
• SKU Name: hubw hbl5662i
