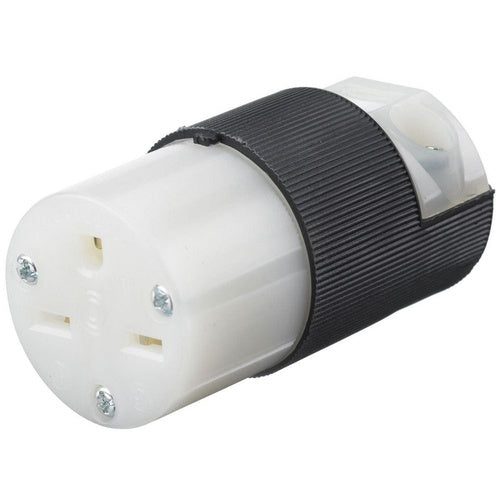

Hubbell HBL5669C Ground Connector Nema6-15P

Overview

Hubbell HBL5669C Ground Connector Nema6-15P

Product Specifications

• UPC: 78358517580
• Ground Type: Grounding
• Color: Black/White
• Cord Size: 0.23 to 0.72 Inch
• Material: Nylon
• Grade: Industrial, Commercial
• Approval: UL 498, CSA C22.2
• Additional Information: Overall Dimension 2.78 Inch Length x 1.53 Inch Width x 1.53 Inch Height; Operating Temperature -40 to 75 Deg C; Enclosure Rating IP20; Applicable Standard NEMA WD 1
• Catalog Number: HBL5669C
• Brand Name: Insulgrip[R]
• Constructional Feature: Chemical/Impact Resistant
• Configuration: 6-15R
• Voltage Rating: 250 Volt
• Current Rating: 15 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: STRAIGHT BLADE DEVICES, FEMALE CONNECTOR BODY, INSULGRIP HEAVY DUTY, INDUSTRIAL/COMMERCIAL GRADE, STRAIGHT, 2- POLE 3-WIRE GROUNDING, 15A 250V, 6-15R, BLACK AND WHITE, SINGLE PACK.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Nylon Material; Black/White Color; 6-15R Configuration; 3 Wire(S); Industrial, Commercial Grade; UL 498, CSA C22.2 Approval; 250 Volt Voltage Rating; 15 Amp Current Rating; Grounding; 2 Pole(S); Chemical/Impact Resistant; 0.23 to 0.72 Inch Cord Size; Insulgrip [R] Brand; Overall Dimension 2.78 Inch Length X 1.53 Inch Width X 1.53 Inch Height; Operating Temperature -40 to 75 Deg C; Enclosure Rating IP20; Applicable Standard NEMA Wd 1
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Straight Blade Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585175805
• SKU Name: hubw hbl5669c

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
