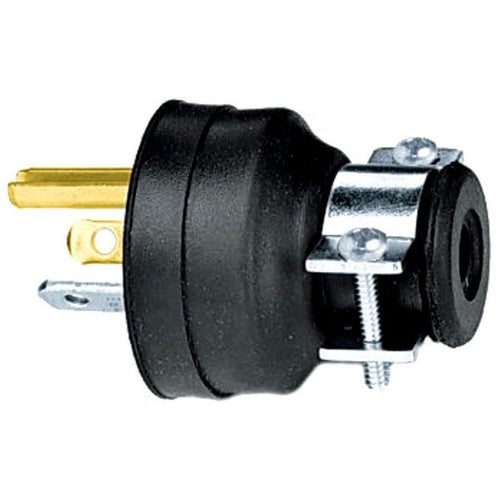

Hubbell HBL5929 Ground Plug Nema7-15P

Overview

Hubbell HBL5929 Ground Plug Nema7-15P

Product Specifications

• UPC: 78358501325
• Cord Size: 0.312 to 0.468 Inch
• Material: Neoprene
• Color: Black
• Approval: UL, CSA C22.2
• Additional Information: Power Rating 2 HP; Blade Holder Material Nylon; Terminal Retainer Material Clear Polycarbonate; Terminal Clamp Material Nickel Plated Steel; Terminal Screw #8-32 TPI Brass; Temperature Rating -40 to 75 Deg C
• Catalog Number: HBL5929
• Brand Name: Wiring Device-Kellems
• Configuration: 7-15P
• Voltage Rating: 277 Volt AC
• Current Rating: 15 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Catalog Description: STRAIGHT BLADE DEVICES, MALE PLUG, HEAVY DUTY, INDUSTRIAL/COMMERCIAL GRADE, STRAIGHT, 2-POLE 3-WIRE GROUNDING, 15A 277V AC, 7-15P, BLACK, SINGLE PACK.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Neoprene Material; Black Color; 7-15P Configuration; 3 Wire(S); UL, CSA C22.2 Approval; 277 Volt AC Voltage Rating; 15 Amp Current Rating; Grounding; 2 Pole(S); 0.312 to 0.468 Inch Cord Size; Power Rating 2 HP; Blade Holder Material Nylon; Terminal Retainer Material Clear Polycarbonate; Terminal Clamp Material Nickel Plated Steel; Terminal Screw #8-32 TPI Brass; Temperature Rating -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Straight Blade Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585013251
• SKU Name: hubw hbl5929
