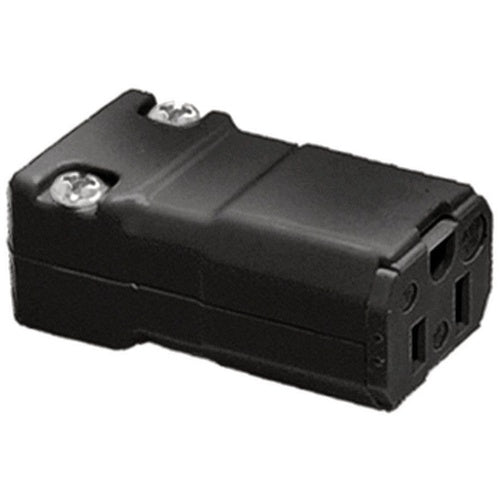

Hubbell HBL5969VBLK Valise Connector, 15A 125V, 5-15R, Black,

Overview

Hubbell HBL5969VBLK Valise Connector, 15A 125V, 5-15R, Black,

Product Specifications

• UPC: 78358501327
• Number Of Wires: 3
• Ground Type: Grounding
• Color: Black
• Cord Size: 0.22 to 0.66 Inch
• Material: Nylon
• Approval: UL 498, UL FS, CSA C22.2
• Additional Information: Contact Material Brass; Applicable Standard NEMA WD 1; Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL5969VBLK
• Brand Name: Valise[R]
• Type: Polarized
• Constructional Feature: Crush Resistant, Impact Resistant
• Configuration: 5-15R
• Voltage Rating: 125 V
• Current Rating: 15 Ampere
• Number Of Poles: 2
• Catalog Description: STRAIGHT BLADE DEVICES, FEMALE CONNECTOR BODY, VALISE SERIES, INDUSTRIAL/COMMERCIAL GRADE, STRAIGHT, 2-POLE 3- WIRE GROUNDING, 15A 125V, 5-15R, BLACK, SINGLE PACK.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Black Color; 5-15R Configuration; 3 Wire(S); UL 498, UL FS, CSA C22.2 Approval; 125 V Voltage Rating; 15 Ampere Current Rating; Grounding; 2 Pole(S); Crush Resistant, Impact Resistant; 0.22 to 0.66 Inch Cord Size; VALISE[R] Brand; Contact Material Brass; Applicable Standard NEMA Wd 1; Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Straight Blade Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585013275
• SKU Name: hubw hbl5969vblk

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
