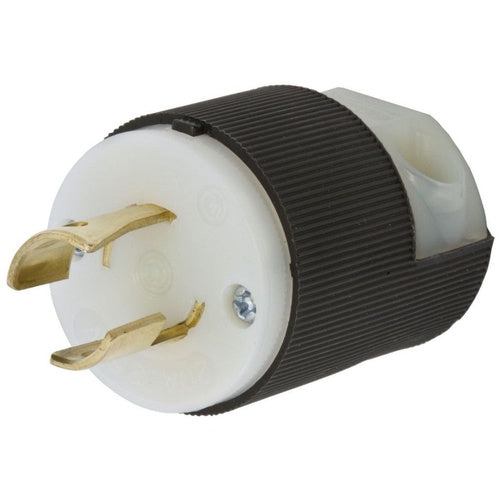

Hubbell HBL7102C Locking Plug-Nema L2-20P

Overview

Hubbell HBL7102C Locking Plug-Nema L2-20P

Product Specifications

• UPC: 78358517705
• Number Of Wires: 2
• Ground Type: Non-Grounding
• Material: Nylon
• Color: Black/White
• Cord Size: 0.23 to 0.72 Inch
• Approval: UL 498, CSA C22.2
• Additional Information: Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Catalog Number: HBL7102C
• Brand Name: Wiring Device-Kellems
• Type: Polarized
• Constructional Feature: Chemical Resistant
• Configuration: L2-20P
• Voltage Rating: 250 Volt AC
• Current Rating: 20 Amp
• Number Of Poles: 2
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, MALE INSULGRIP PLUG, 20A 250V, 2-POLE 2-WIRE NON-GROUNDING, NEMA L2-20P, SCREW TERMINAL, BLACK AND WHITE NYLON, POLARIZED.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Black/White Color; L2-20P Configuration; 2 Wire(S); UL 498, CSA C22.2 Approval; 250 Volt AC Voltage Rating; 20 Amp Current Rating; Non-Grounding; 2 Pole(S); Chemical Resistant; 0.23 to 0.72 Inch Cord Size; Twist-Lock [R], Insulgrip [R] Brand; Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585177052
• SKU Name: hubw hbl7102c
