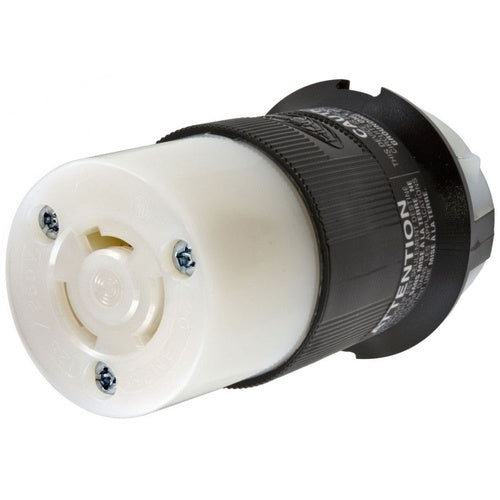

Hubbell HBL7314C Locking Connector-3P3W20A250V

Overview

Hubbell HBL7314C Locking Connector-3P3W20A250V

Product Specifications

• UPC: 78358503750
• Number Of Wires: 3
• Ground Type: Non-Grounding
• Material: Nylon
• Color: Black/White
• Cord Size: 0.36 to 0.93 Inch
• Approval: UL, CSA C22.2
• Additional Information: Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C
• Catalog Number: HBL7314C
• Brand Name: Wiring Device-Kellems
• Type: Polarized
• Constructional Feature: Impact/Chemical Resistant
• Configuration: Non-NEMA Locking
• Voltage Rating: 125/250 Volt AC
• Current Rating: 20 Amp
• Number Of Poles: 3
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, FEMALE INSULGRIP CONNECTOR BODY, 20A 125/250V, 3-POLE 3-WIRE NON GROUNDING, NON- NEMA, SCREW TERMINAL, BLACK AND WHITE NYLON.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Black/White Color; Non-NEMA Locking Configuration; 3 Wire(S); UL, CSA C22.2 Approval; 125/250 Volt AC Voltage Rating; 20 Amp Current Rating; Non-Grounding; 3 Pole(S); Impact/Chemical Resistant; 0.36 to 0.93 Inch Cord Size; TWIST-LOCK[R], INSULGRIP[R] Brand; Wire Size 16 to 8 AWG (Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585037509
• SKU Name: hubw hbl7314c
