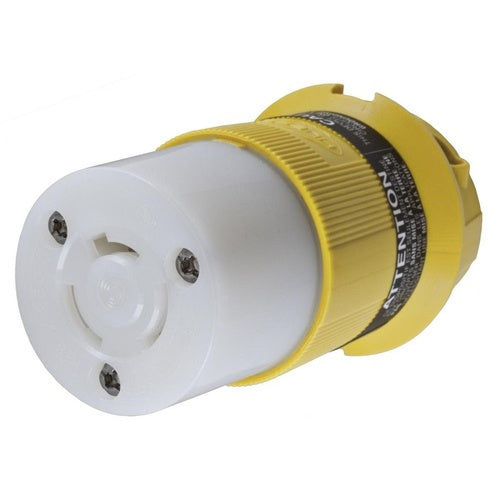

Hubbell HBL73CM14C 20A 125/250V Locking Connector

Overview

Hubbell HBL73CM14C 20A 125/250V Locking Connector

Product Specifications

• UPC: 78358503753
• Number Of Poles: 3
• Number Of Wires: 3
• Ground Type: Non-Grounding
• Material: Nylon
• Color: Yellow
• Cord Size: 0.36 to 0.93 Inch
• Approval: UL 94/498, CSA C22.2
• Additional Information: Contact Material Brass; Enclosure IP20; Temperature Rating -40 to 60 Deg C
• Catalog Number: HBL73CM14C
• Brand Name: Twist-Lock[R]
• Model: HBL
• Type: Polarized
• Constructional Feature: Impact Resistant, Chemical Resistant
• Configuration: Non-NEMA Locking
• Voltage Rating: 125/250 VAC
• Current Rating: 20 Ampere
• Catalog Description: TWIST-LOCK MARINE GRADE, FEMALE INSULGRIP CONNECTOR BODY, 20A 125/250V, 3-POLE 3-WIRE NON GROUNDING, NON-NEMA, SCREW TERMINAL NYLON
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Yellow Color; Non-NEMA Locking Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 125/250 VAC Voltage Rating; 20 Ampere Current Rating; Non-Grounding; 3 Pole(S); Impact Resistant, Chemical Resistant; 0.36 to 0.93 Inch Cord Size; TWIST-LOCK[R], INSULGRIP[R] Brand; Contact Material Brass; Enclosure IP20; Temperature Rating -40 to 60 Deg C; HBL Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585037530
• SKU Name: hubw hbl73cm14c

Resources

• Manufacturer Spec Sheet
