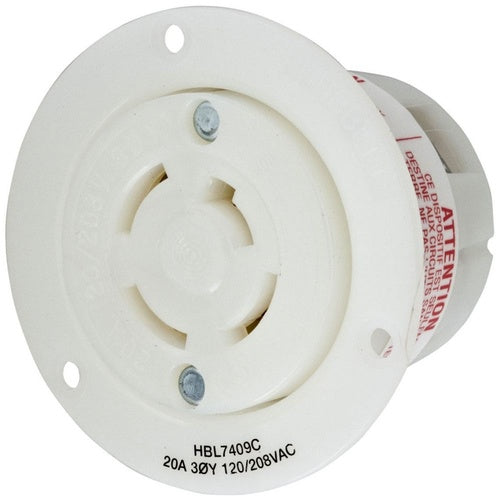

Hubbell HBL7409C Locking Flanged Outlet-4P4W20A250V

Overview

Hubbell HBL7409C Locking Flanged Outlet-4P4W20A250V

Product Specifications

• UPC: 78358503755
• Material: Nylon Casing
• Color: White
• Approval: UL 94/498, CSA C22.2
• Additional Information: Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL7409C
• Brand Name: Twist-Lock[R], Insulgrip[R]
• Configuration: Non-NEMA Locking
• Voltage Rating: 120/208 VAC Star 3-Phase
• Current Rating: 20 Ampere
• Number Of Poles: 4
• Number Of Wires: 4
• Ground Type: Non-Grounding
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, INSULGRIP FLANGED RECEPTACLE, 20A 3-PHASE WYE 120/208V AC, 4-POLE 4-WIRE NON- GROUNDING, NON-NEMA, SCREW TERMINAL, NYLON CASING, BACK WIRED, WHITE.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Nylon Casing Material; White Color; Non-NEMA Locking Configuration; 4 Wire(S); UL 94/498, CSA C22.2 Approval; 120/208 VAC Star 3-Phase Voltage Rating; 20 Ampere Current Rating; Non-Grounding; 4 Pole(S); TWIST-LOCK[R], INSULGRIP[R] Brand; Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Flanged Receptacle Outlet
• Unspsc: 39121406
• UPC 12 Digit: 783585037554
• SKU Name: hubw hbl7409c

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
