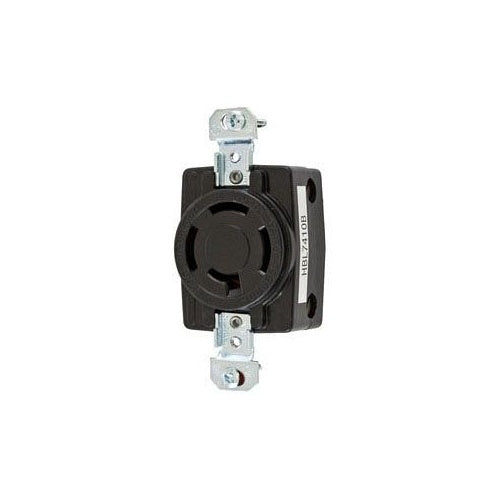

Hubbell HBL7410B Locking Receptacle-4P4W20A120/208V

Overview

Hubbell HBL7410B Locking Receptacle-4P4W20A120/208V

Product Specifications

• UPC: 78358533352
• Number Of Poles: 4
• Number Of Wires: 4
• Ground Type: Non-Grounding
• Face Outer Diameter: 1.57 Inch
• Material: Nylon (Face), RTP (Base)
• Color: Black
• Wiring: Back, Side
• Mounting: Flush Mount
• Approval: UL 94/498, CSA C22.2, Fed.Spec W-C-596
• Additional Information: Wire Size 16 to 8 AWG; Contact Material Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Application Industrial
• Catalog Number: HBL7410B
• Brand Name: Twist-Lock[R], Variload[R]
• Model: HBL
• Type: Single
• Constructional Feature: Abuse/Impact/Corrosion/Moisture Resistant
• Configuration: Non-NEMA Locking
• Voltage Rating: 120/208 Volt AC Star 3-Phase
• Current Rating: 20 Amp
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, SINGLE FLUSH RECEPTACLE, 20A 3-PHASE WYE 120/208V AC, 4-POLE 4-WIRE NON- GROUNDING, NON-NEMA, SCREW TERMINAL, BACK WIRED, BLACK THERMOSET.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Type; Nylon (Face), Rtp (Base) Material; Black Color; Non-NEMA Locking Configuration; 4 Wire(S); UL 94/498, CSA C22.2, FED.SPEC W-C-596 Approval; 120/208 Volt AC Star 3-Phase Voltage Rating; Flush Mount Mounting; 20 Amp Current Rating; Non-Grounding; 4 Pole(S); Abuse/Impact/Corrosion/Moisture Resistant; Back, Side Wiring; 1.57 Inch Face Outer Diameter; TWIST-LOCK[R] Brand; Wire Size 16 to 8 AWG; Contact Material Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Application Industrial; HBL Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585333526
• SKU Name: hubw hbl7410b
