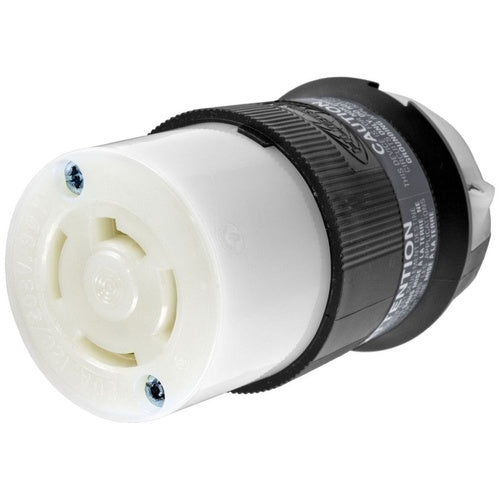

Hubbell HBL7413C Locking Connector-4P4W20A120/208V

Overview

Hubbell HBL7413C Locking Connector-4P4W20A120/208V

Product Specifications

• UPC: 78358503758
• Number Of Wires: 4
• Ground Type: Non-Grounding
• Material: Nylon
• Color: Black/White
• Cord Size: 0.35 to 1.15 Inch
• Approval: UL 94/498, CSA C22.2
• Additional Information: Wire Size 16 to 8 AWG; Contact Material Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Application Industrial
• Catalog Number: HBL7413C
• Brand Name: Twist-Lock[R]
• Model: HBL
• Constructional Feature: Impact/Chemical Resistant
• Configuration: Non-NEMA Locking
• Voltage Rating: 120/208 Volt AC Star 3-Phase
• Current Rating: 20 Amp
• Number Of Poles: 4
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, FEMALE INSULGRIP CONNECTOR BODY, 20A 3-PHASE WYE 120/208V AC, 4-POLE 4-WIRE NON- GROUNDING, NON-NEMA, SCREW TERMINAL, BLACK AND WHITE NYLON.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Nylon Material; Black/White Color; Non-NEMA Locking Configuration; 4 Wire(S); UL 94/498, CSA C22.2 Approval; 120/208 Volt AC Star 3-Phase Voltage Rating; 20 Amp Current Rating; Non-Grounding; 4 Pole(S); Impact/Chemical Resistant; 0.35 to 1.15 Inch Cord Size; TWIST-LOCK[R], INSULGRIP[R] Brand; Wire Size 16 to 8 AWG; Contact Material Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Application Industrial; HBL Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585037585
• SKU Name: hubw hbl7413c
