Crouse-Hinds eahc2701s294

Overview

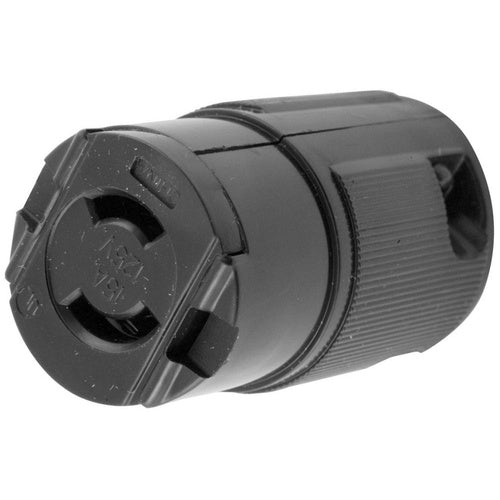

Hubbell HBL7464V Locking Connector-Nema Ml-1R

Product Specifications

• UPC: 78358523725
• Number Of Wires: 2
• Ground Type: Non-Grounding
• Material: Nylon
• Color: Black
• Cord Size: 0.22 to 0.385 Inch
• Approval: UL 498, CSA C22.2
• Additional Information: Wire Size 18 to 14 AWG (Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C
• Catalog Number: HBL7464V
• Brand Name: Wiring Device-Kellems
• Type: Polarized, Midget
• Constructional Feature: Abuse Resistant
• Configuration: ML-1R
• Voltage Rating: 125 Volt AC
• Current Rating: 15 Amp
• Number Of Poles: 2
• Catalog Description: LOCKING DEVICES, MIDGET TWIST-LOCK, VALISE, FEMALE CONNECTOR BODY, 15A 125V AC, 2-POLE 2-WIRE NON GROUNDING, NEMA ML- 1R, SCREW TERMINAL, BLACK, POLARIZED.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized, Midget Type; Nylon Material; Black Color; ml-1R Configuration; 2 Wire(S); UL 498, CSA C22.2 Approval; 125 Volt AC Voltage Rating; 15 Amp Current Rating; Non-Grounding; 2 Pole(S); Abuse Resistant; 0.22 to 0.385 Inch Cord Size; Twist-Lock [R], Valise [R] Brand; Wire Size 18 to 14 AWG (Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585237251
• SKU Name: hubw hbl7464v

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
