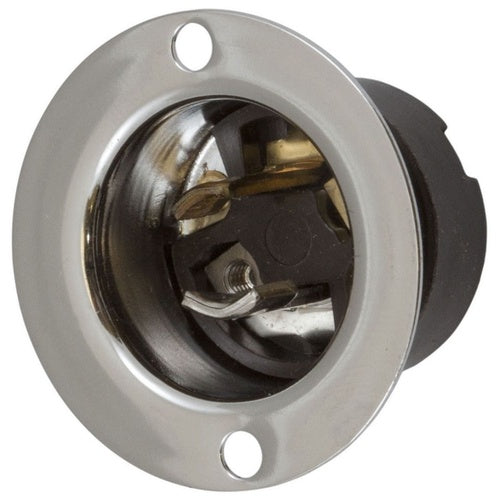

Hubbell HBL7467 Locking Flanged-Inlet-Nema Ml-1P

Overview

Hubbell HBL7467 Locking Flanged-Inlet-Nema Ml-1P

Product Specifications

• UPC: 78358523732
• Number Of Wires: 2
• Ground Type: Non-Grounding
• Material: Stainless Steel Flange
• Color: Black
• Approval: UL 94/498, CSA C22.2
• Additional Information: Blade Material Brass; Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL7467
• Brand Name: Twist-Lock[R]
• Type: Polarized
• Constructional Feature: Heat Resistant
• Configuration: ML-1P
• Voltage Rating: 125 VAC
• Current Rating: 15 Ampere
• Number Of Poles: 2
• Catalog Description: TWIST-LOCK MIDGET INDUSTRIAL FLANGED INLET, 15A 125V AC, 2-POLE 2-WIRE NON GROUNDING, NEMA ML-1P, SCREW TERMINAL FLANGE, POLARIZED
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Stainless Steel Flange Material; Black Color; ml-1P Configuration; 2 Wire(S); UL 94/498, CSA C22.2 Approval; 125 VAC Voltage Rating; 15 Ampere Current Rating; Non-Grounding; 2 Pole(S); Heat Resistant; TWIST-LOCK[R] Brand; Blade Material Brass; Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Flanged Male Base Inlet
• Unspsc: 39121406
• UPC 12 Digit: 783585237329
• SKU Name: hubw hbl7467

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
