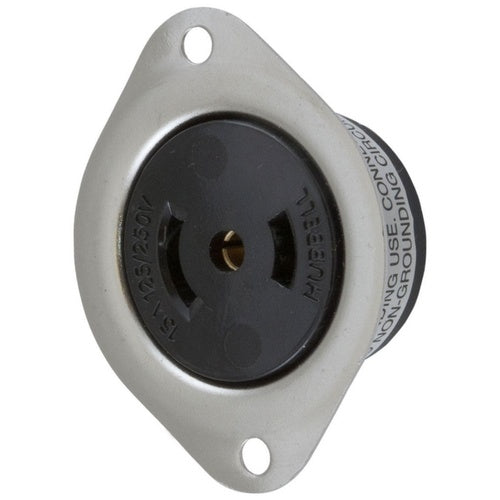

Hubbell HBL7487 Locking Flanged Outlet-Nema Ml-3R

Overview

Hubbell HBL7487 Locking Flanged Outlet-Nema Ml-3R

Product Specifications

• UPC: 78358523746
• Ground Type: Non-Grounding
• Material: Phenolic (Base), Stainless Steel (Flange)
• Color: Black
• Approval: UL, CSA C22.2
• Additional Information: Wire Size 18 to 14 AWG (Solid/Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C
• Catalog Number: HBL7487
• Brand Name: Wiring Device-Kellems
• Type: Flanged
• Configuration: ML-3R
• Voltage Rating: 125/250 Volt AC
• Current Rating: 15 Amp
• Number Of Poles: 3
• Number Of Wires: 3
• Catalog Description: LOCKING DEVICES, MIDGET TWIST-LOCK, INDUSTRIAL, FLANGED RECEPTACLE, 15A 125/250V AC, 3-POLE 3-WIRE NON GROUNDING, NEMA ML-3R, SCREW TERMINAL, STAINLESS STEEL FLANGE.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Flanged Type; Phenolic (Base), Stainless Steel (Flange) Material; Black Color; ml-3R Configuration; 3 Wire(S); UL, CSA C22.2 Approval; 125/250 Volt AC Voltage Rating; 15 Amp Current Rating; Non-Grounding; 3 Pole(S); TWIST-LOCK[R] Brand; Wire Size 18 to 14 AWG (Solid/Stranded Copper); Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Flanged Receptacle Outlet
• Unspsc: 39121406
• UPC 12 Digit: 783585237466
• SKU Name: hubw hbl7487
