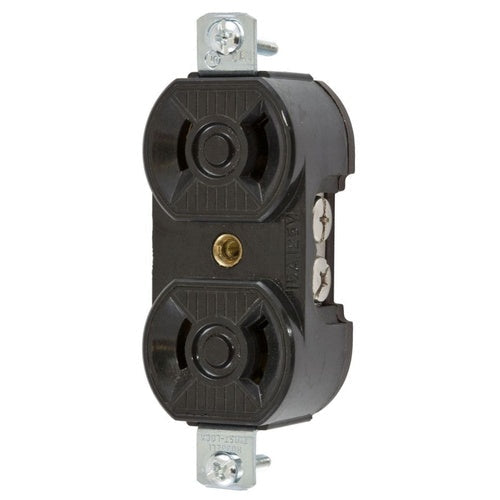

Hubbell HBL7540 Locking Duplex Receptacle-N L1-15R

Overview

Hubbell HBL7540 Locking Duplex Receptacle-N L1-15R

Product Specifications

• UPC: 78358523760
• Number Of Poles: 2
• Number Of Wires: 2
• Ground Type: Non-Grounding
• Material: Phenolic
• Color: Black
• Mounting: Flush Mount
• Approval: UL 94/498, CSA C22.2
• Catalog Number: HBL7540
• Brand Name: Twist-Lock[R]
• Model: HBL
• Type: Duplex Locking
• Constructional Feature: Impact Resistant, Heat Resistant
• Configuration: L1-15R
• Voltage Rating: 125 VAC
• Current Rating: 15 Ampere
• Catalog Description: TWIST-LOCK INDUSTRIAL DUPLEX FLUSH RECEPTACLE, 15A 125V, 2-POLE 2-WIRE NON GROUNDING, NEMA L1-15R, SCREW TERMINAL
• Category: Receptacles & Surge Protectors
• Full Technical Description: Duplex Locking Type; Phenolic Material; Black Color; L1-15R Configuration; 2 Wire(S); UL 94/498, CSA C22.2 Approval; 125 VAC Voltage Rating; Flush Mount Mounting; 15 Ampere Current Rating; Non-Grounding; 2 Pole(S); Impact Resistant, Heat Resistant; TWIST-LOCK[R] Brand; HBL Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585237602
• SKU Name: hubw hbl7540

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
