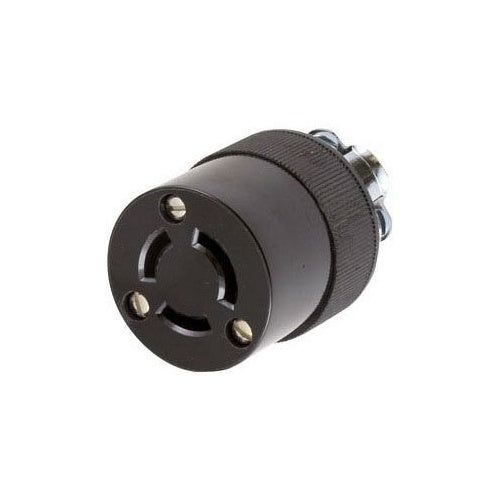

Hubbell HBL7555G Locking Ground Connector 3P3W10A250V

Overview

Hubbell HBL7555G Locking Ground Connector 3P3W10A250V

Product Specifications

• UPC: 78358523763
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Phenolic
• Color: Black
• Cord Size: 0.296 to 0.625 Inch
• Approval: UL 94/498, CSA C22.2
• Additional Information: Enclosure IP20; Temperature Rating -40 to 60 Deg C
• Catalog Number: HBL7555G
• Brand Name: Twist-Lock[R]
• Model: HBL
• Type: Polarized
• Constructional Feature: Impact Resistant, Chemical Resistant
• Configuration: Non-NEMA Locking
• Voltage Rating: 250 VAC/ 125 V
• Current Rating: 15 Ampere at 125 V, 10 Ampere at 250 VAC
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, FEMALE INSULGRIP CONNECTOR BODY, 10A 250V/15A 125V, 2-POLE 3-WIRE GROUNDING, NON- NEMA, SCREW TERMINAL, BLACK PHENOLIC
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Phenolic Material; Black Color; Non-NEMA Locking Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 250 Vac/ 125 V Voltage Rating; 15 Ampere at 125 V, 10 Ampere at 250 VAC Current Rating; Grounding; 2 Pole(S); Impact Resistant, Chemical Resistant; 0.296 to 0.625 Inch Cord Size; TWIST-LOCK[R], INSULGRIP[R] Brand; Enclosure IP20; Temperature Rating -40 to 60 Deg C; HBL Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585237633
• SKU Name: hubw hbl7555g

Resources

• Manufacturer Spec Sheet
