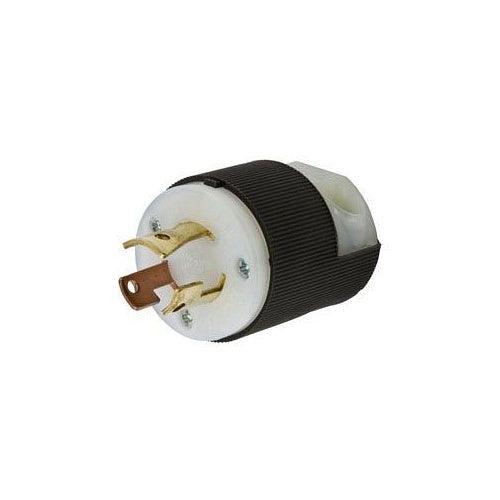

Hubbell HBL7567C Locking Plug-3P3W10A250V

Overview

Hubbell HBL7567C Locking Plug-3P3W10A250V

Product Specifications

• UPC: 78358517875
• Number Of Wires: 3
• Ground Type: Non-Grounding
• Material: Nylon
• Color: Black/White
• Cord Size: 0.23 to 0.72 Inch
• Approval: UL 498, CSA C22.2
• Additional Information: Wire Size 18 to 10 AWG; Enclosure Rating IP20; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Catalog Number: HBL7567C
• Brand Name: Wiring Device-Kellems
• Type: Polarized
• Constructional Feature: Impact/Chemical Resistant
• Configuration: Non-NEMA Locking
• Voltage Rating: 125/250 Volt AC
• Current Rating: 10/15 Amp
• Number Of Poles: 3
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INSULGRIP PLUG, 10A, 250V/15A, 125V, 3 POLE, 3 WIRE NON-GROUNDING, NON-NEMA, MULTIPLE DRIVE SCREWS, BLACK AND WHITE NYLON
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Black/White Color; Non-NEMA Locking Configuration; 3 Wire(S); UL 498, CSA C22.2 Approval; 125/250 Volt AC Voltage Rating; 10/15 Amp Current Rating; Non-Grounding; 3 Pole(S); Impact/Chemical Resistant; 0.23 to 0.72 Inch Cord Size; Twist-Lock [R], Insulgrip [R] Brand; Wire Size 18 to 10 AWG; Enclosure Rating IP20; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585178752
• SKU Name: hubw hbl7567c
