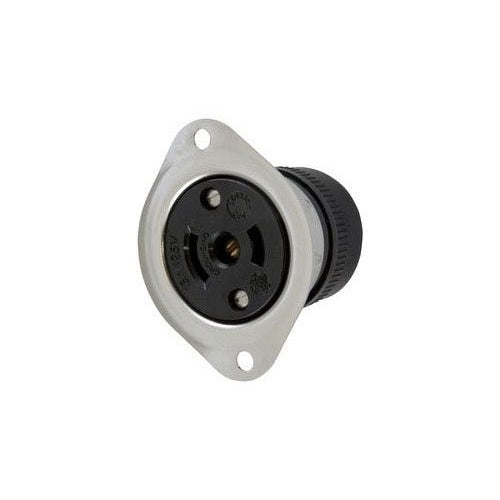

Hubbell HBL7598 Locking Flanged Outlet-Nema Ml-2R

Overview

Hubbell HBL7598 Locking Flanged Outlet-Nema Ml-2R

Product Specifications

• UPC: 78358523783
• Ground Type: Grounding
• Material: Stainless Steel Flange
• Color: Black/Stainless
• Approval: UL 94/498, CSA C22.2
• Additional Information: Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL7598
• Brand Name: Twist-Lock[R]
• Type: Midget
• Configuration: ML-2R
• Voltage Rating: 125 VAC
• Current Rating: 15 Ampere
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: LOCKING DEVICES, MIDGET TWIST-LOCK, INDUSTRIAL, FLANGED RECEPTACLE, 15A 125V AC, 2-POLE 3-WIRE GROUNDING, NEMA ML- 2R, SCREW TERMINAL, STAINLESS STEEL FLANGE.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Midget Type; Stainless Steel Flange Material; Black/Stainless Color; ml-2R Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 125 VAC Voltage Rating; 15 Ampere Current Rating; Grounding; 2 Pole(S); TWIST-LOCK[R] Brand; Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Flanged Receptacle Outlet
• Unspsc: 39121406
• UPC 12 Digit: 783585237831
• SKU Name: hubw hbl7598
