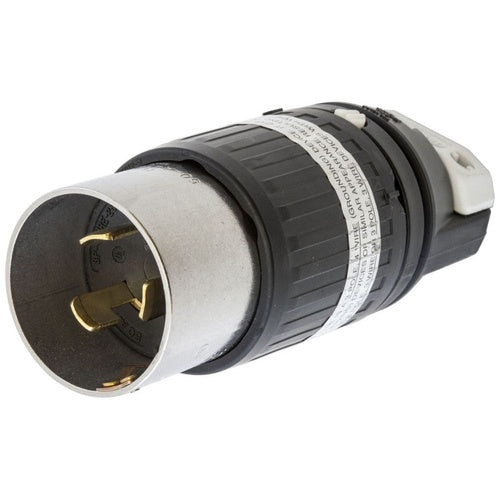

Hubbell HBL7765C Locking Plug, 3P4W, 50A 250Vdc/600Vac

Overview

Hubbell HBL7765C Locking Plug, 3P4W, 50A 250Vdc/600Vac

Product Specifications

• UPC: 78358523785
• Ground Type: Grounding
• Material: Nylon Housing, Thermoplastic Polyester Interior
• Color: Black/White
• Cord Size: 0.83 to 1.25 Inch
• Approval: UL 498, CSA C22.2
• Additional Information: Wire Size 8 to 4 AWG (Stranded Copper); Blade Material Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Catalog Number: HBL7765C
• Brand Name: Wiring Device-Kellems
• Type: Polarized
• Constructional Feature: Impact/Heat Resistant
• Voltage Rating: 250 Volt DC, 600 Volt AC
• Current Rating: 50 Amp
• Number Of Poles: 3
• Number Of Wires: 4
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, INDUSTRIAL, MALE INSULGRIP PLUG, 50A 250V DC/600V AC, 3-POLE 4-WIRE GROUNDING, NON-NEMA, SCREW TERMINAL, NYLON HOUSING THERMOPLASTIC POLYESTER INTERIOR, BLACK
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Housing, Thermoplastic Polyester Interior Material; Black/White Color; 4 Wire(S); UL 498, CSA C22.2 Approval; 250 Volt DC, 600 Volt AC Voltage Rating; 50 Amp Current Rating; Grounding; 3 Pole(S); Impact/Heat Resistant; 0.83 to 1.25 Inch Cord Size; TWIST-LOCK[R], INSULGRIP[R] Brand; Wire Size 8 to 4 AWG (Stranded Copper); Blade Material Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585237855
• SKU Name: hubw hbl7765c

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
